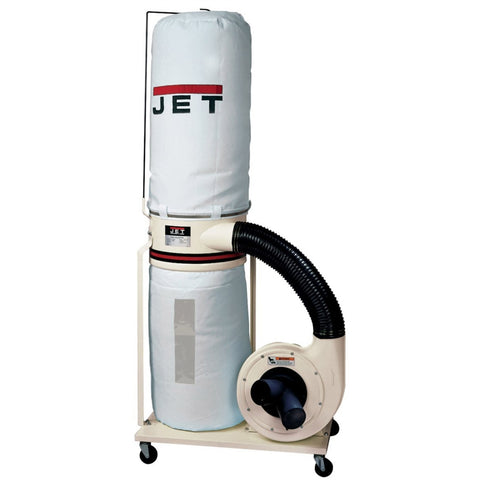

JET 708657K DC-1100VX-BK Dust Collector, 1.5HP, 1Ph, 115/230V, 30-Micron Bag Filter Kit
$589.04
$692.99
Jet 708657K DC-1100VX-BK Dust Collector, 1.5HP, 1Ph, 115/230V, 30-Micron Bag Filter Kit
- Vortex Cone improves chip separation and collector bag packing efficiency
- Eliminates premature filter clogging for sustained performance
- Single-stage design for economical and quiet operation
- Industrial controls designed for years of trouble-free use
- Quick-connect collection bags with elastic band for fast, easy installation and removal
- High air velocity (CFM) design stands up to any competitive specifications
- Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
- Includes four casters for maneuverability and total portabili
| Style (Type) | Bag |
| Air Flow @ 4" (CFM) | 1100 |
| Number of Air Inlets | 1 at 6", 2 at 4" |
| Static Pressure (Wc.) | 10-1/2 |
| Sound Rating (Db.) | 70 - 80 |
| Bag Diameter (In.) | 20 |
| Collection Bag Capacity (Cu. Ft.) | 5-3/10 |
| Collection Bag Length (In.) | 30 |
| Filter Bag/Canister Length (In.) | 32 |
| Impeller Diameter (In.) | 11 |
| Impeller Material | Steel |
| 1-Hose Connection Diameter (In.) | 6 |
| 2-Hoses Connection Diameter (In.) | 4 |
| Motor Power (HP) | 1-1/2 |
| Motor Phase (PH) | 1 |
| Motor Voltage (V.) | 115/230 |
| Prewired Voltage (V.) | 115 |
| Motor Amps | 11/5.5 |
