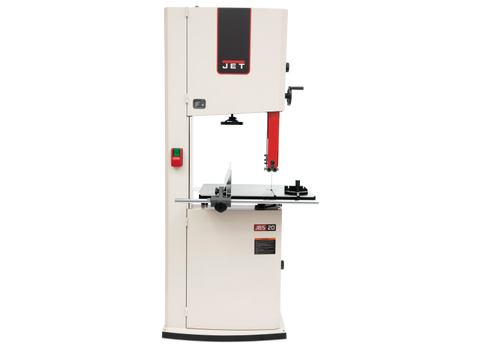

JET 714850 JWBS-20-5, 20 in. Bandsaw, 5HP, 230V

• 16" Resaw capacity for cutting large pieces of wood, slicing veneers and cutting book matched panels
• 27-1/4" x 20" precision ground cast iron table for added stability and work support
• Fence system features a micro-adjustable, dual-position side plate
• Tool-less, independently adjustable, upper and lower ball bearing guides
• Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support
• Easy-to-read blade tension scale can be viewed through upper door window
• Single knob adjustment simplifies the blade tracking process
• Blade tracking window provides clear view of blade during tracking
• Heavy duty tensioning with quick release features three settings: full tension, partial tension and full release
• Cast iron trunnion for maximum support and stability

• Table Height from Floor: 37"
• Blade Length: 158"
• Minimum Saw Blade Width: 1/8"
• Blade Speed (SFPM): 2530/4850
• Recommended Circuit Size: 40 Amps
• Motor Power: 5 HP
• Motor Voltage: 230 V only
• Dust Collection Minimum (CFM): 400
• Motor Phase (PH): 1
• Motor Amps: 22
• Dust Port Outside Diameter: 4" (x2)
• Cutting Capacity Height: 16"
• Table Tilt (Deg.): -5 to 45
• Blade Width: 1" x 3TPI
• Table Size (L x W): 27-1/4" x 20" x 1-5/8"
• Max Saw Blade Width: 1-1/2"
• Cutting Capacity Width: 20"
• Band Saw Size/Wheel Diameter: 20-1/4"
