    JET Deluxe XactaSaw 5HP, 1Ph, 50" Rip

    <script id="easy2Script_acet_289" language="JavaScript" type="text/javascript" src="/v/easy2scripts/acet_289.js"></script>

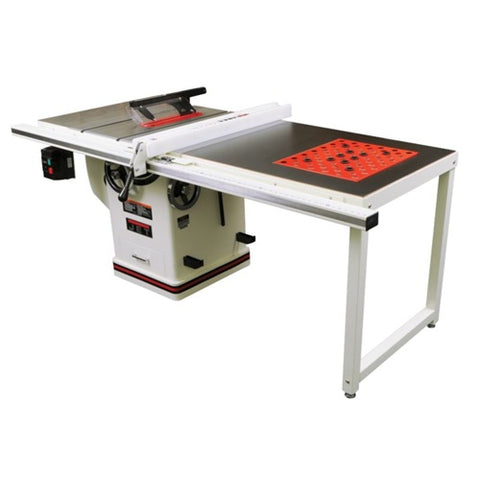

    JET 708679Pk Dlx Xacta Saw 5Hp, 50 in. Rip w/ Downdraft Table and Leg Set

    JET
    $0.00
    Items shipped directly from the manufacturer may be subject to a fee. Please call 877-783-8899 for details.
    Choose your options:
    JPW Drop Ship Policy
    Freight Policy(required):
    Product Code: JET-708679PK
    Usually Ships in 7-10 Days
    Stock Status:  BackOrder

    JET 708679PK DLX XACTA SAW 5HP, 50 in. Rip w/ Downdraft Table and Leg Set

    • EXCLUSIVE Commercial XACTA Fence II with T-square design
    • Quick release riving knife greatly reduces binding/kickback risk
    • JET downdraft table with exclusive design (patent pending), draws harmful dust particles away from the user without obstructing the users movement or productivity
    • Push button arbor lock for rapid blade change
    • Shrouded Blade increases dust collection efficiency
    • Standard 11" left and right cast iron extension wings provides the largest table surface in its class
    • Poly-V drive belt system delivers quiet, efficient operation
    • Rail-mounted magnetic switch is easy to reach and provides overload protection
    • Enclosed cabinet with built-in sealed storage drawer
    • Hinged motor cover on cabinet gives quick access to the motor and belts
    • Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters
    • Heavy-duty chrome plated handwheels contribute to smooth trunnion/arbor movement
    • Left tilt, wide stance heavy-duty trunnion for stability and smooth blade positioning
    Style (Type)Cabinet
    Blade Diameter (In.)10
    Arbor Diameter (In.)5/8
    Arbor Speed (RPM)4300
    Maximum Depth of Cut (In.)3
    Maximum Depth of Cut at 45 Degrees (In.)2-1/8
    Maximum Rip Left of Blade (In.)13
    Maximum Rip Right of Blade (In.)50
    Table in Front of Saw Blade at Maximum Depth of Cut (In.)10
    Maximum Diameter of Dado (In.)8
    Maximum Width of Dado (In.)13/16
    Table TypeCast Iron
    Table Size (L x W) (In.)29 x 20
    Table Size with Extension (L x W) (In.)29 x 42
    Miter Gauge TypeDeluxe
    Dust Collection Minimum CFM Required (CFM)350
    Dust Port Outside Diameter (In.)4
    Motor Power (HP)5
    Motor Phase (PH)1
    Motor Voltage (V.)230
    Prewired Voltage (V.)230
    Motor Amps18
