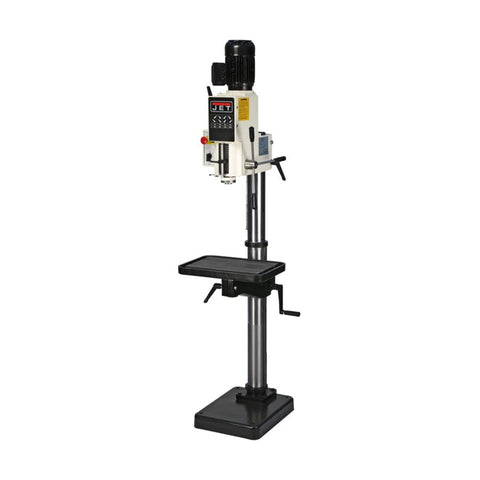

Style (Type) | Geared Head |
Drills to Center of Circle (In.) | 20 |
Drilling Capacity Cast Iron (In.) | 1-3/8 |
Drilling Capacity Mild Steel (In.) | 1-1/4 |
|
|
Column Diameter (In.) | 3-15/16 |
Distance Column to Spindle (In.) | 10 |
Range of Spindle Speeds (RPM) | Low - 130, 260, 420, 840; High - 535, 1070, 1745, 3480 |
Spindle Taper (In. x TPI) | MT-3 |
Spindle Travel (In.) | 5-1/8 |
Spindle Distance to Base (In.) | 44 |
Spindle Distance to Table (Max.) (In.) | 35-5/8 |
Table Size (L x W) (In.) | 15-3/4 x 19-3/4 |
Table Travel (In.) | 24-1/2 |
T-Slots Number and Size (In.) | 2 - 9/16 |
|
Work Table Weight Capacity (Lbs.) | 350 |
Base Dimensions (In.) | 24 x 22 |
|
|
Motor (HP) | 1 to 1-1/2 HP, 220V, 3Ph |
Prewired (V.) | 220 |
Overall Dimensions (L x W x H) (In.) | 24 x 22 x 72 |
Weight (Lbs.) | 475 |
