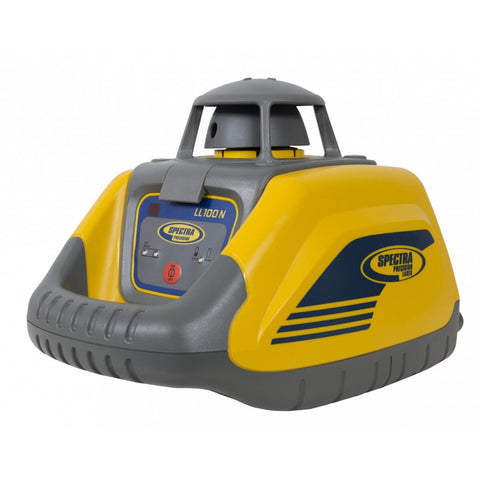

    Spectra LL100N Laser Level
    Spectra LL100N Laser Level - Image 1 of 0
    Spectra LL100N Laser Level - Image 2 of 0

    Spectra LL100N Laser Level

    Spectra
    $
    Product Code: SPL-LL100N
    Usually Ships in 7-10 Days

    Spectra LL100N Laser Level

    The LL100N Laser Level is capable of handling a wide variety of elevation control applications. Versatility is added with single-axis manual slope capability for setting out driveways, ramps, and residential drainage lines. It is rugged enough for the toughest jobsite and designed to survive a 3 foot (1 m) drop onto concrete. The LL100 Laser Level is backed by a 2-year instant over the counter exchange warranty.
    Designed for both general construction and site preparation and excavation, the Spectra Precision Laser LL100 Laser Level can tackle a range of applications. It provides one-person elevation control up to a 1,000-foot diameter area for increased productivity. This kit comes with everything you need to get to work: LL100 Laser, receiver, and rod clamp, all protected by a rigid, durable carrying case.
    • Automatic self-leveling increases productivity with fast setups and minimal training
    • One person elevation control up to 575 ft (175 m) away increases productivity
    • Durable construction can withstand tough jobsite conditions
    • Height of Instrument alert stops laser rotation if elevation changes occur to avoid erroneous readings HR320 receiver offers 2 accuracies and has grade displays front and rear
    • Exclusive 2-year limited warranty with instant "over the counter" exchange policy eliminates downtime
    • Laser Source: 650 nm visible, Class 2
    • Laser Accuracy: 1/8 in at 100 ft (3 mm at 30 m)
    • Operating Range: 1,150 ft (350 m) diameter with receiver HR320
    • Self-leveling Range: 5 degrees
    • Compensation Method: Electronic self-leveling
    • Drop Height on Concrete performance: 3 ft (1 m)
    • Single Axis Manual Slope Mode: Yes
    • Out-of-level warning: Rotor stops, laser shuts off, red out-of-level LED flashes
    • Power source: 2 x D Alkaline Batteries
    • Battery life: 80 hours Alkaline
    • Battery Status LED: Flashing red LED
    • Rotation speed: 600 RPM
    • Tripod Mount (Horizontal and Vertical): 5/8 x 11
    • Operating temperature: 23 degF to 113 degF (-5 degC to 45 degC)
    • Storage temperature: -4 degF to 158 degF (-20 degC to 70 degC)
    • Water resistant: Yes, and IP54 sealing
    • Size: 8.5L — 6.7W — 6.0H in (21.6L — 17.1W — 15.2H cm)
    • Weight: 3.3 lbs (1.5 kg)
    • Warranty: 2 Years
    (1) LL100 Laser Transmitter
    (1) HR320 Receiver
    (1) C59 Rod Clamp
    (1) Universal hard case
    (2) "D" batteries
    (2) "AA" batteries
    (1) multi-language user guide.
