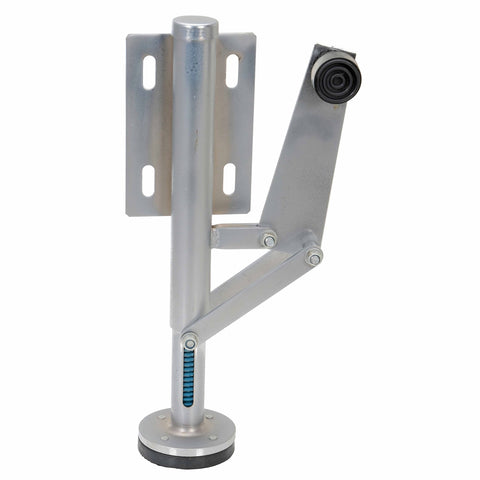

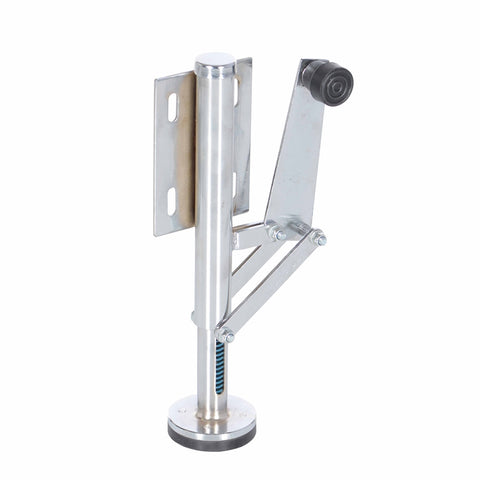

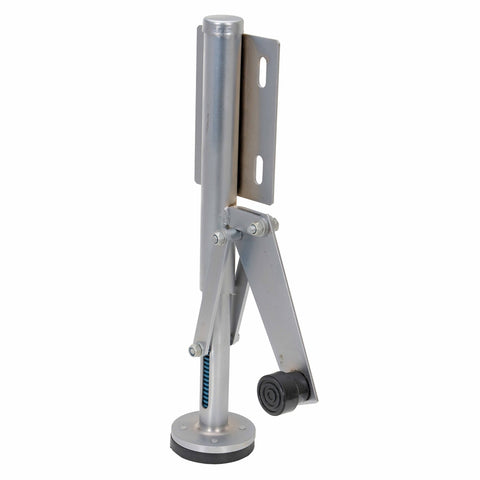

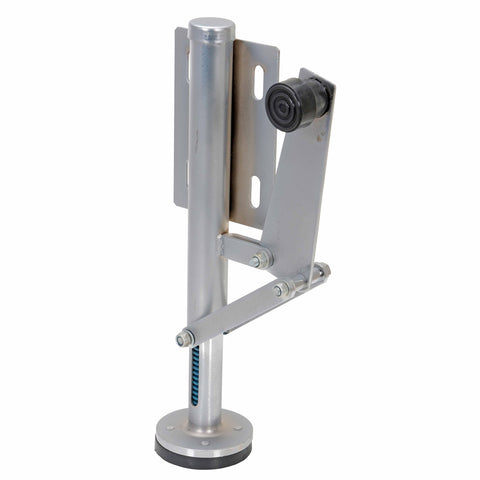

Vestil FL-LK-SMR-L Floor Lock Left Side Mount
$75.95
Vestil Floor Lock Left Side Mount FL-LK-SMR-L
- Spring loaded pad accommodates uneven floors
- Simple foot pressure immobilizes equipment
- Simple kick rod releases floor lock
- Independent brake system can be installed to any convenient location on the cart
| Mounting Height (in.) | 10-1/4 to 12-3/4 |
| Retracted Height on Bottom Mounting Hole (in.) | 10 |
| Extended Height on Bottom Mounting Hole (in.) | 12 |
| Overall Unit Retracted Height (in.) | 15-15/32 |
| Overall Unit Extended Height (in.) | 18 |
| Used with Caster width (in.) | 2 of Travel |
| Pad Mounting Height (in.) | 1-1/2 |
| Plate Width (in.) | 4-1/2 |
| Plate Height (in.) | 6-1/2 |
| Mounting Bolt Diameter (in.) | 3/8 |
| Mounting Plate Thickness (in.) | 1/8 |
| Slotted Hole Width/Height (in.) | 13/32 x 13/16 |
| Slotted Height (in.) | 1-3/16 |
| Slotted Centered Width (in.) | 2-29/32 |
