Freud Tools 2" (Dia.) One-Piece Rail & Stile Bit
$124.97

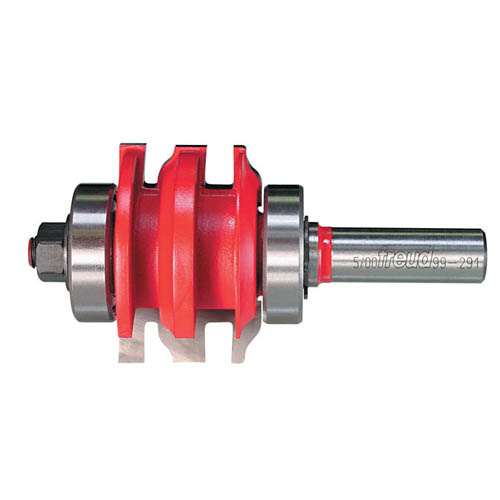

Freud 99-291 One-Piece Rail & Stile Router Bit with 2" Overall Diameter
Aplication: A simple, efficient method for creating beautiful cabinet doors without having to reconfigure or change cutters or fence settings
- Cuts all frame members face down so variations in stock thickness are not a problem.
- 99-290 produces a quarter round profile, 99-291 produces an ogee profile, and 99-293 produces a classical bead profile.
- Cuts all composition materials, plywoods, hardwoods, and softwoods.
- Use on table-mounted portable routers.
Overall Diameter (D): 2"
Bearing Diameter (B):
Bearing Type:
Carbide Height (h): 1-9/32"
Cut Depth(c):
Minor Height(m): 15/64"
Small Diameter(n) :1-1/4"
Radius ( R ):
Large Radius (R1): 7/32"
Small Radius(R2): 11/64"
Angle (d):
Shank Diameter (A) :1/2"
Overall Length(H) :4-3/32"
