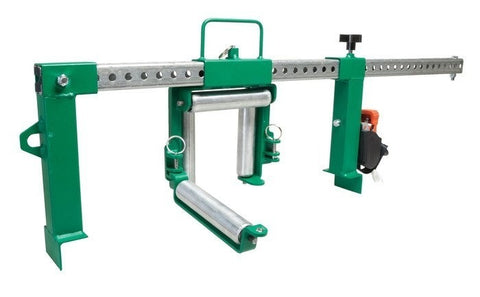

Greenlee Heavy Duty Cable Roller
$892.42
Greenlee Heavy Duty Cable Roller
- Cable pulling tool has no loose pieces
- 6' (1.8 m) long durable retractable ratchet strap for sturdy assembly onto tray
- Closed conveyer roller guide that traps cable within guide without damaging cable jacket
- Mounting system above tray
- Easily handle forces of up to 200 lbs.. (45.4 kg)
- 4 conveyer roller guide with 2 retained spring pull-pin release to easily remove cable from both sides
- Designed and Assembled in USA
| Overall Length | 42-3/4'' (1085.9 mm) |
| Cable Size | 4'' (101 mm) |
| Overall Height | 14-1/4'' (362 mm) |
| Pitch Diameter | Roller Opening Size : 4" (101.6 mm) square |
| Design | Adjustable legs to fit onto tray width sizes of 12" (304.8 mm) to 36" (914.4 mm) |
| Material | Steel |
| Roller Opening Size | 4'' (101.6 mm) square |
| Application | Use to assist pulling cables along non basket-style cable trays. Designed to aid load forces during cable pulls especially right before 90ΓΒ° bends and offsets without taking space up inside the tray. |
| Capacity | 200 lb (90 kg) |
| Pulling Capability | 200 lb (90 kg) |
