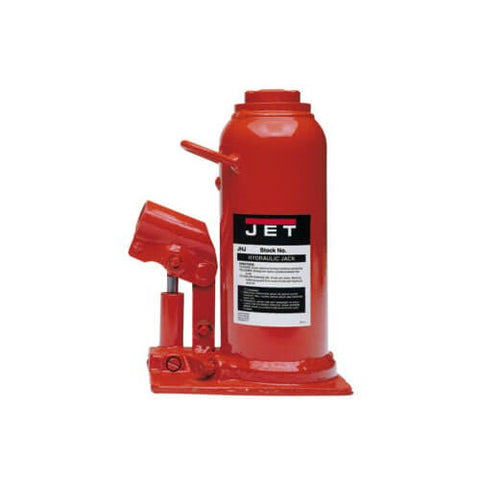

The JET 453322 JHJ-22-1/2 22-1/2 Ton Hydraulic Bottle Jack features a load capacity of 22-1/2 tons with a piston height of 6-1/4 in. The pump piston and ram are chrome plated for added corrosive resistance increasing durability. Each JHJ model functions in upright, angled or horizontal positions for increased versatility. JET JHJ Series Hydraulic Bottle Jacks comply with ANSI/ASME B30.1 and PALD-1 standards.

• Precision machined and polished cylinders provide non-abrasive, leak-free, durable performance
• Heavy-duty bases are electrically welded providing a stable platform
• Hydraulic system is protected from damage by internal by-pass mechanism
• Chrome-plated piston and ram are corrosion resistant for use in any industrial environment
• Industrial-duty construction permits use in extreme climates
• Lifting, pushing, spreading, bending, pressing or straightening capabilities
• Upright, horizontal or angled operating positions increase versatility
• Pump handle included
• Complies with ANSI/ASME B30.1 and PALD-1 Standards
• Operating temperature range from -4 degF to 158 degF

• Load Capacity (Tons) - 22-1/2
• Minimum Height (In.) - 10-5/8
• Piston Height (In.) - 6-1/4
• Maximum Height (In.) - 16-7/8
• Base Dimensions (L x W) (In.) - 7-1/8 x 5-1/2
• Weight (Lbs.) - 28
• Rebuild / Repair Kit - JHJ022-RK

(1) JET 453322 JHJ-22-1/2 22-1/2 Ton Hydraulic Bottle Jack
