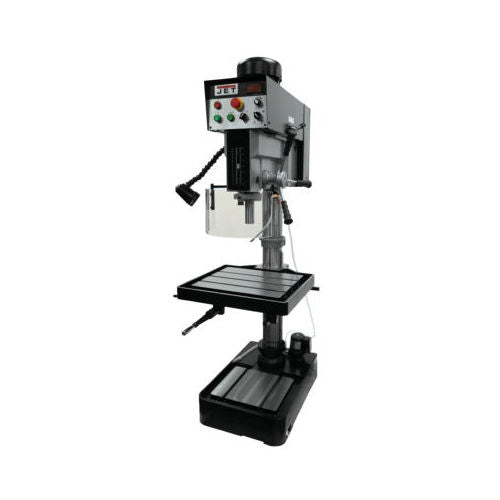

JET 354225 JDP-20EVST-230, 1-1/2 in. Drilling Capacity, 2HP, 230V 3Ph with Forward and Reverse Tapping capability
$6,319.75
$7,435.00
JET 354225 JDP-20EVST-230, 1-1/2 in. Drilling Capacity, 2HP, 230V 3Ph with Forward and Reverse Tapping capability
JET Electronic Variable Speed Drill Presses offer spindle speed rates between 65 and 2000 RPM for a wide variety of applications. Designed to permit continuous speed adjustment - even during operation. Tapping capability, an emergency stop and a heavy-duty casted head are but a few of the features JET includes to enhance overall use and accuracy.
| Style (Type) | Variable Speed |
| Drills to Center of Circle (in) | 20 |
| Drilling Capacity Cast Iron (In.) | 1-1/2 |
| Drilling Capacity Mild Steel (In.) | 1-3/8 |
| Tapping Capacity Cast Iron (In.) | 7/8 |
| Tapping Capacity Mild Steel (In.) | 3/4 |
| Distance Column to Spindle (In.) | 10-7/16 |
| Number of Spindle Speeds | Variable |
| Range of Spindle Speeds (RPM) | 65-540 /245- 2,000 |
| Column Diameter (In.) | 4-1/2 |
| Spindle Taper (In. x TPI) | MT-3 |
| Spindle Travel (In.) | 6 |
| Spindle Distance to Base (In.) | 44-1/2 |
| Spindle Distance to Table (Max.) (In.) | 30-1/4 |
| Table Size (L x W) (In.) | 22x18-3/4 |
| Table Travel (In.) | 20 |
| T-Slots Number and Size (In.) | 3 & 5/8 |
| T-Slot Centers (In.) | 7-7/16 |
| Work Table Weight Capacity (Lbs.) | 154 |
| Base Dimensions (In.) | 27 x 19 |
| Base Slots Number & Size (In.) | 2 & 5/8 |
| Motor (HP) | 2 HP, 230V 3ph |
| Overall Dimensions (L x W x H) (In.) | 38.18 x27.16 x 79.52 |
| Weight (Lbs.) | 792 |
