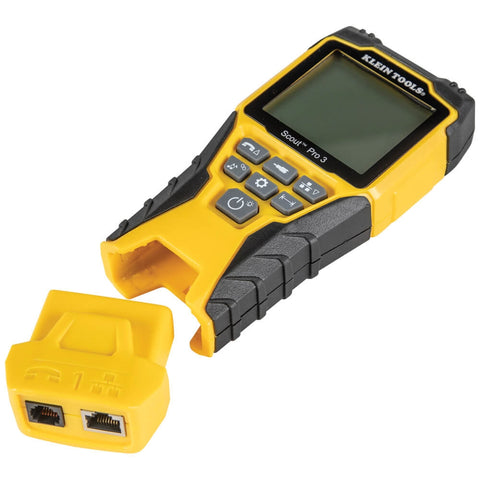

The Scout Pro 3 Tester Starter Kit is a versatile cable tester that locates and tests voice, data and video cables. Identify multiple cable runs with included location mapping remotes. This kit verifies accurate cable installations each time. Backlit display assists in reading results in lower light.

• Cable tester tests voice (RJ11/12), data (RJ45) and video (coax F-connector) terminated cables with clearly defined results
• Measure cable length up to 2000 feet (610 m)
• Test for Open, Short, Miswire or Split-Pair faults
• Backlit LCD screen displays cable length, wiremap, cable ID and test results
• Trace cables, wire pairs and individual conductor wires with multiple style tone generator (requires analog probe Cat. No. VDV500-123; sold separately)
• Hub blink mode to identify port location on a hub or a switch

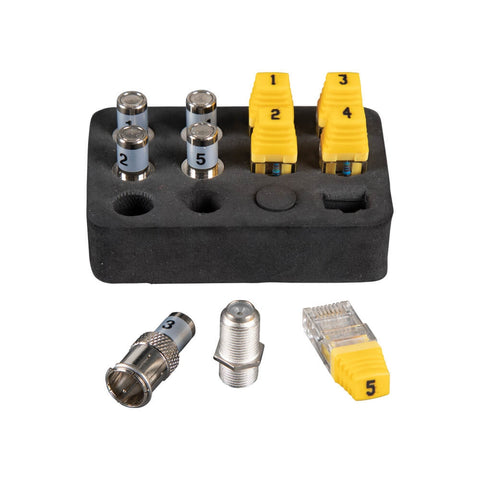

• LanMap and CoaxMap Location Remotes (5 each) map and ID multiple cable runs in a single step
• Includes voltage warning, shield detection, low battery indicator, a self-storing remote, and auto power off feature to conserve battery life (9V included)
• Auto Power-off feature to conserve battery life (9V included)
• Kit includes: Scout Pro 3 Tester, (1) self-storing remote, (5) LanMap RJ45 locator remotes, (5) CoaxMap F-connector locator remotes, (1) coax F-connector, manual and 9V battery

• Supported Remotes: 18
• Overall Length: 7 ft. ft. (17.8 cm)
• Special Features: Measures Cable Length; Backlit LCD; Hub Blink
• Type: Twisted Pair, DATA, Voice, LAN, and Coaxial
• Multiple Style Tone Generator: Yes (5); Requires Tracing Probe (Cat. No. VDV500-123); Sold Separately
• Connection & Adapter Types: RJ11, RJ12, RJ45, Coax F
• Location ID: (5) RJ45 Data and (5) F-Coax connector Locator Remotes
• Overall Width: 1.25 ft. ft. (3.2 cm)
• Faults Detected: Open, Short, Miswire

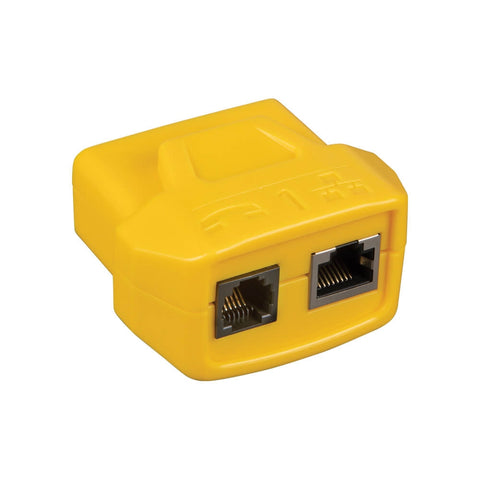

• Test-n-Map ID Remotes: (1) Self-Storing
• Overall Height: 3 ft. ft. (7.6 cm)
• Material: Plastic and Metal
• Display: Backlit LCD
• Drop Protection: 2 m
• Weight: 1.2 lb (0.5 kg)
• Battery Life: Active: 50 hr

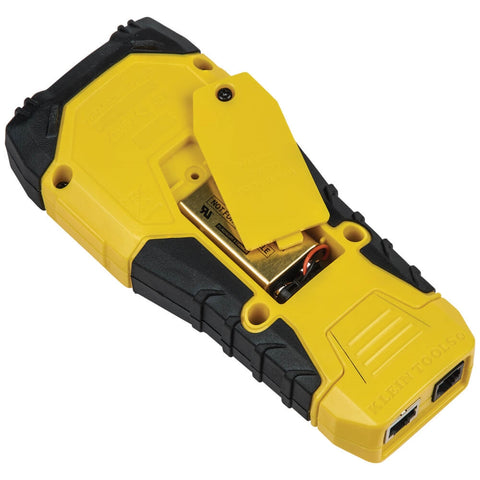

• Batteries: 9V Alkaline
• Application: Cable Testing
• Test & Measure Types: Ethernet / Data and Coaxial
• Included: Tester, Self-Storing Remote, (5) LanMap RJ45 Locator Remotes, (5) CoaxMap F-connector Locator Remotes, (1) Coax F-adapter, Manual, (1) 9V Battery
• Standard: CE
• Cable Type: DATA:, Shielded or Unshielded, CAT3, CAT5E, CAT6, CAT6A, CAT7; COAXIAL: RG59, RG6/6Q
• Accuracy: Length Measurement: +/- 5% (ft) or 5% m

(1) Klein VDV501-851 Scout Pro 3 Tester Starter Kit
