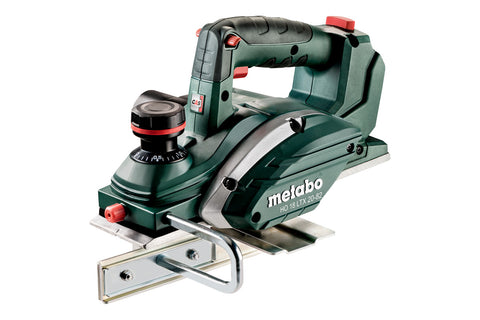

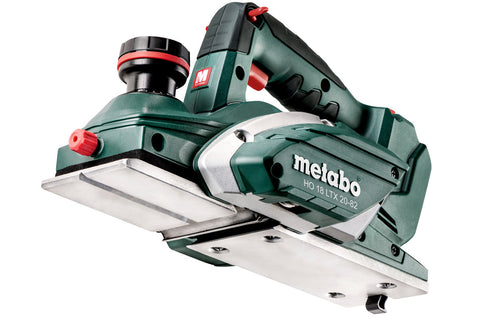

• Light, compact cordless planer for planing, rebating and chamfering
• Adjustable planer depth and notch depth
• Aluminium die cast and milled cut planer base with V-groove for easy chamfering
• Parallel guide / rip fence for precise guiding of the planer
• Grip area with non-slip soft-grip surface
• Extraction possibility by means of connecting an all-purpose vacuum cleaner
• Angled chip ejection adapter for controlled ejection of the wood shavings
• Easy-to-empty textile dust bag for working without extraction facilities
• Strap on the planer base for stopping the machine and protecting the work piece
• Easy blade change of the robust reversible carbide planer blades
• Soft start and overload protection for long service life of motor and drive
• Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-systems.com

KEY FIGURES

• Battery voltage: 18 V
• Planing width: 82 mm
• Adjustable planing depth: 0 - 2 mm
• Maximum notch depth: 9 mm
• No-load speed: 16000 rpm
• Length of planer base: 295 mm
• Weight without battery pack: 2.9 kg / 6.4 lbs
• Weight with battery pack: 3.3 kg / 7.3 lbs

VIBRATION

• Planing soft wood: 1.6 m/s²
• Uncertainty of measurement K: 1.5 m/s²

NOISE EMISSION

• Sound pressure level: 90 dB(A)
• Sound power level (LwA): 101 dB(A)
• Uncertainty of measurement K: 3 dB(A)

• Reversible carbide planer blades
• Parallel guide
• Depth gauge
• Chip ejection adapter
• Textile dust bags
• Without battery pack, without charger
