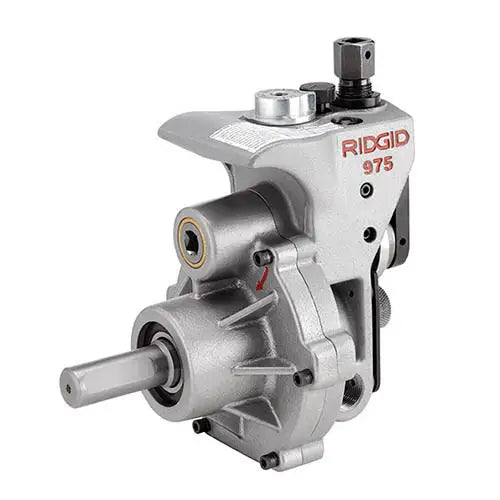

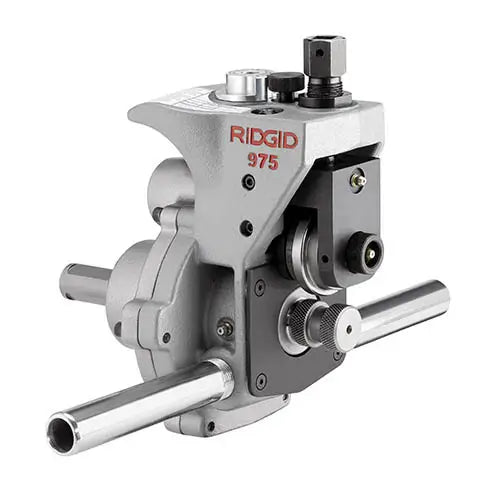

The RIDGID 975 (25638) Combo Roll Groover mounts on the 300 Power Drive (sold separately) for machine-powered grooving jobs, but is also designed to manually groove in-place pipe. The 975 forms rolled grooves in steel, aluminum and PVC pipe and will groove 1 1/4" to 6" diameter pipe, schedule 10 and schedule 40. It is also designed to groove 1 1/4" to 6" schedule 10 and 1 1/4" to 2" schedule 40 stainless steel pipe. It can also be adapted for 2" - 8" Type K, L, M and DWV copper tube with a roll set change (additional rolls sold separately). The grooves are formed by mechanically advancing a grooving roll into the pipe, which is supported by a drive roll. The only adjustment necessary is for the depth of the groove.

The 975 Combo Roll Groover is specifically designed to be used either in place or with the Model 300 Power Drive (38 and 57 RPM Models, sold separately). With the appropriate adapter (sold separately), the unit can also work with the Model 300 Compact Threading Machine (sold separately).

• Performs both manual and power-driven roll grooving:

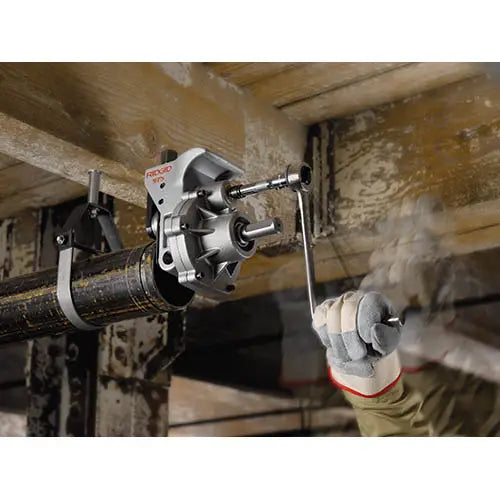

• Equipped with ratchet wrench for manual grooving of in-place pipe

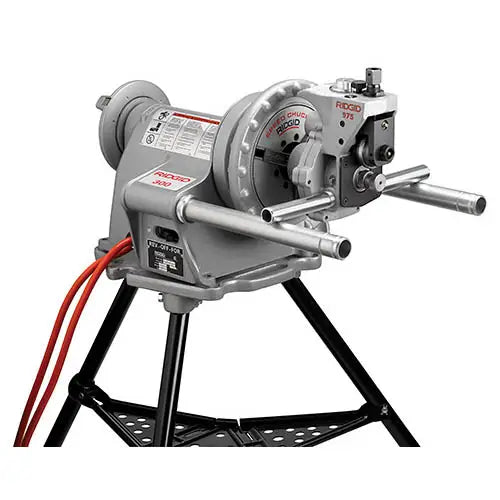

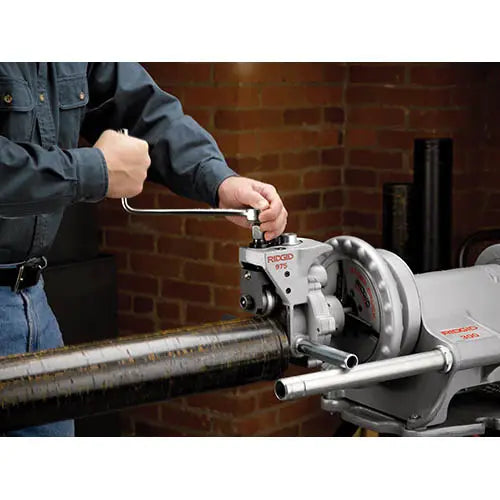

• Mounts on 300 Power Drive (sold separately) for machine-powered grooving jobs
• Suitable for use with 300 Compact Machine with adapter (both sold separately)
• High gear reduction results in less hand-force required for manual grooving
• Auto tracking technology keeps pipe automatically engaged to groover throughout process
• Includes permanently-fixed depth gauge for quicker set-up
• Portable and lightweight design allows for easy transport
• Tough, ductile iron construction absorbs job site abuse for long-lasting performance

• Capacity:
• 1 1/4" to 6" Schedule 10 and Schedule 40 steel, aluminum, and PVC pipe
• 1 1/4" to 6" Schedule 10
• 1 1/4" to 2" Schedule 40 stainless steel pipe
• 1 1/2" to 3" Schedule 80 PVC pipe
• 2" to 8" Copper Tube Types K, L, M, and DWV (with roll change)
• Weight: 27.6 lbs.
• Depth Adjustment: Adjusting screw and integral, index depth gauge
• Actuation: Feed screw with 1/2" ratchet wrench (included), or any 15/16" hex wrench
• Power Drive Mounting:
• 300 Power Drive 38/57 RPM (reverse direction only)
• 300 Compact Threading Machine (with 67662 adapter)

• 1 - Combo Roll Groover
• 1 - Drive Shaft (30883)
• 1 - Roll Groove (30933)
• 1 - Ratchet Wrench (1/2" Drive) with 90° Bend (30703)
• 1 - 1/2" Drive Locking Extension (30708)
• 2 - Support Bars (87682)
