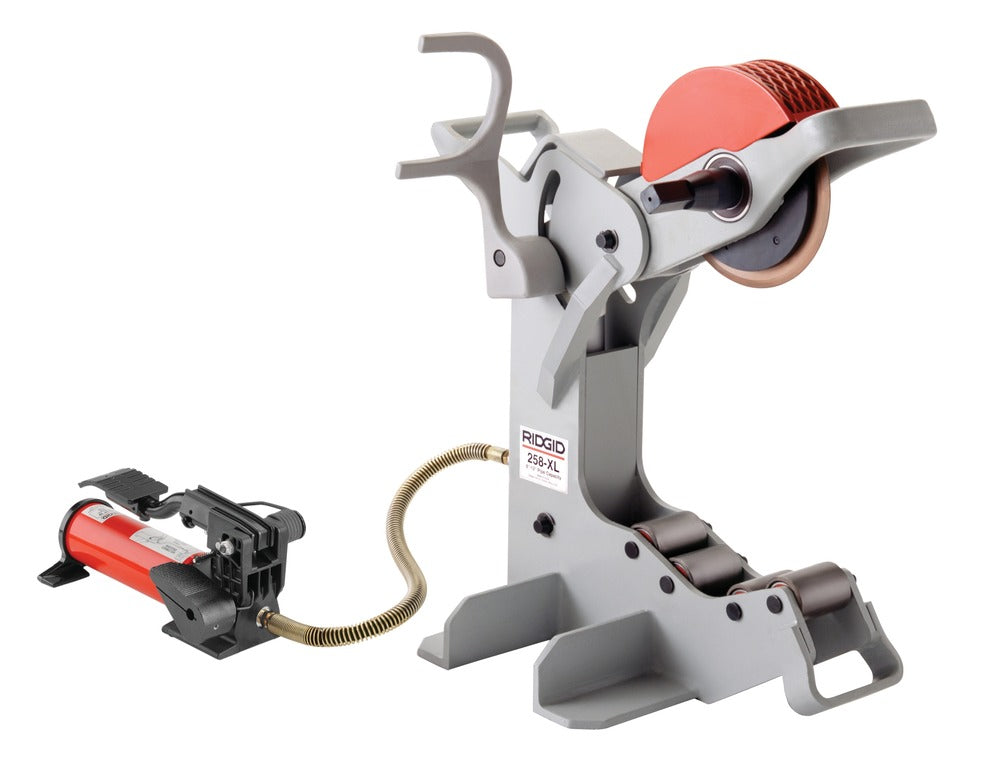

The RIDGID 258-XL (58227) Power Pipe Cutter offers a 8" to 12" diameter pipe cutting capacity. Powered by the RIDGID Model 700 Power Drive (sold separately), the 258XL is a displacement cutter that provides square cuts. The operator controls the feeding rate by pumping the hydraulic foot pump throughout the operation. A square cut with minimal burr on either 21 ft. or nipple lengths of pipe is achieved quickly without abrasive dust, sparks, or open flame. Now one person can easily square cut 12" schedule 40 pipe in minutes. Also, the RIDGID Pipe Roller for beveling (sold separately) can be used to rotate the pipe while a second operator uses a grinder (sold separately) to bevel the pipe.

• Square cuts 21 ft. or nipple lengths of pipe without effort
• Powered by model 700 Power Drive (NOT included) at 26-30 RPM
• Easily cuts by displacing instead of removing pipe material
• Produces no abrasive dust, dangerous sparks, or open flame
• Quickly cuts steel pipe with minimal burr
• Excellent for cutting pipe for groove joining
• Heavy-duty design is ideal for both field or shop use
• Cutting Capacity: 8 in. to 12 in. (200 to 300 mm) schedule 10/40 steel pipe
• Weight (pipe cutter only): 140 lbs. (63 kg)

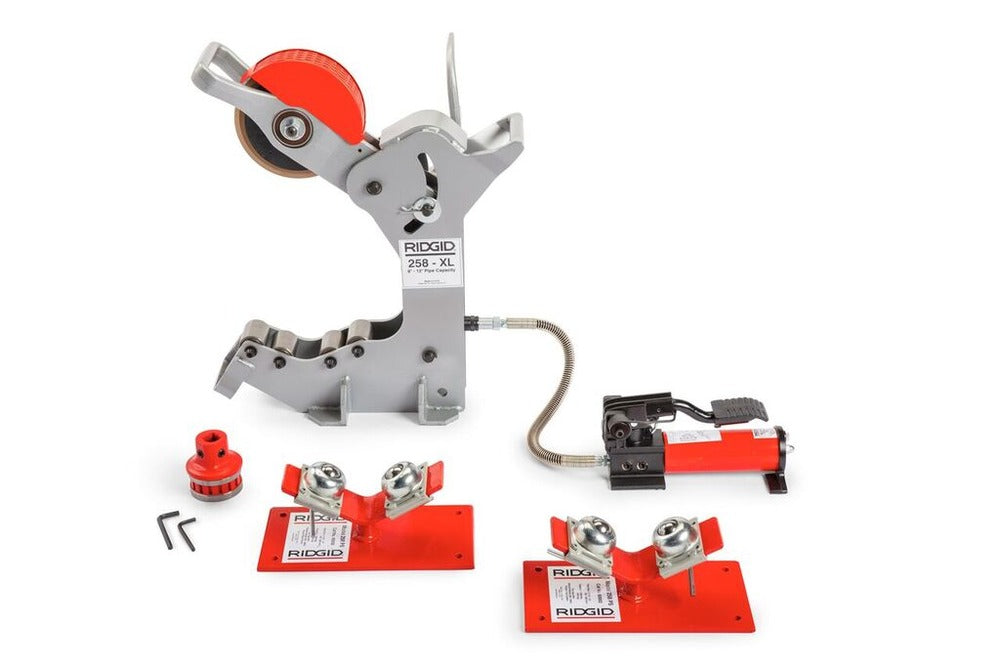

• 1 - Pipe Cutter Frame

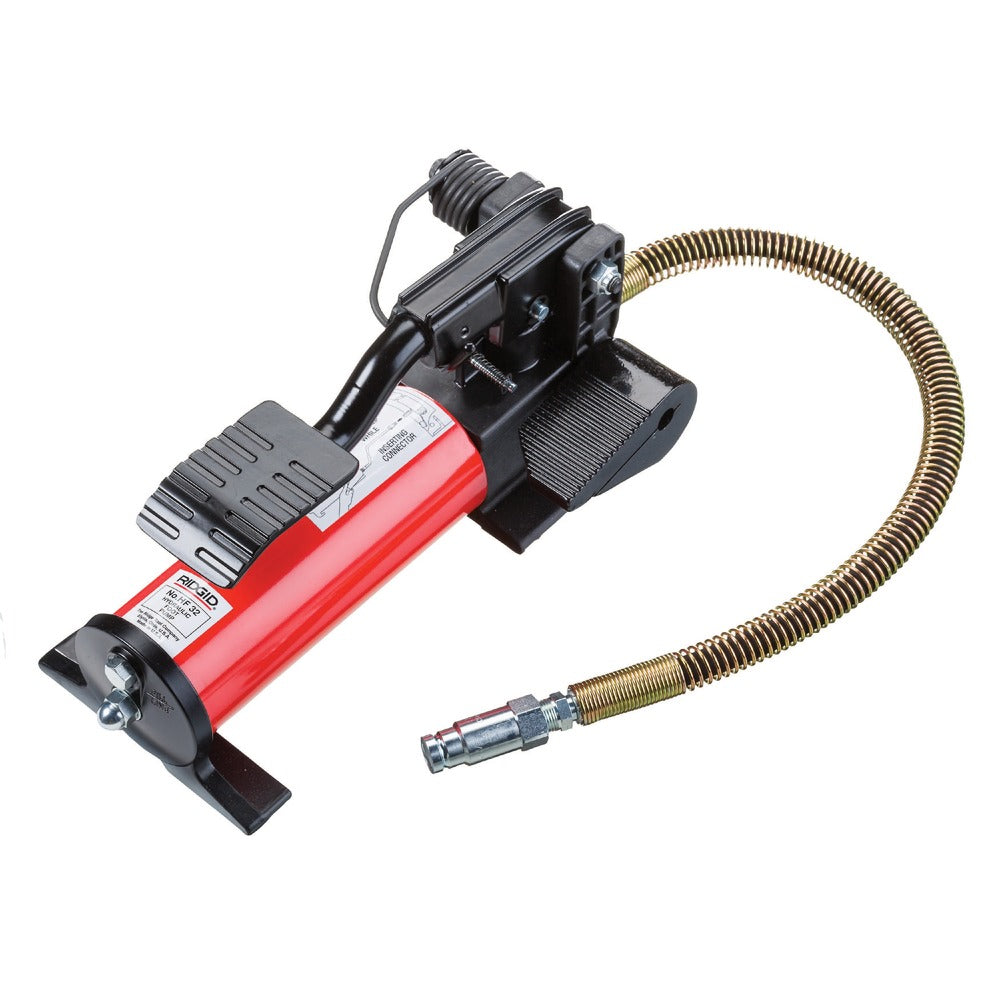

• 1 - Model HF32 Hydraulic Foot Pump (59512)
• 1 - Model 258 Hydraulic Ram (59517)
• 1 - Model 774 Square Drive Adapter, 15/16" (42620)
• 2 - Ball Transfer Pipe Supports, 2 1/2" to 12" (60002)
• 1 - Cutter Wheel Assembly (66687)
• Note - Model 700 Power Drive NOT Included
