Freud Tools 3/4" (Dia.) Downshear Helix Flush Trim Bit
$38.97
Freud 42-202 Downshear Helix Flush Trim Router Bit with 3_4" Overall Diameter
Aplication: Trimming laminate counter tops and doing pattern work
- Downshear cutting angle produces a slicing action for chip-free, splinter-free cuts on the top surface of laminates and veneers.
- The shear action also delivers easier, smooth cuts in thick materials.
- The 3/4" diameter body and full 1" or 2" cutting length provide the stability and cutting capacity for thick stock or for routing multiple parts with a template.
- Cuts all composition materials, plywoods, hardwoods, and softwoods.
- Use on portable or table-mounted routers for template work.

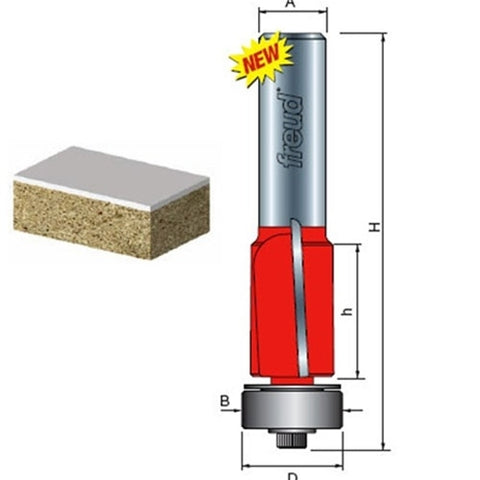

Overall Diameter (D): 3/4"
Bearing Diameter (B): 3/4"
Bearing Type:
Carbide Height (h): 1"
Cut Depth(c):
Minor Height(m):
Small Diameter(n) :
Radius ( R ):
Large Radius (R1):
Small Radius(R2):
Angle (d):
Shank Diameter (A) :1/2"
Overall Length(H) :3-1/8"
