CMT 818.113.11B Dovetail Bit, 7/16-Inch Diameter, 1/4-Inch Shank
$27.07
CMT 818.113.11B Dovetail Bit, 7/16-Inch Diameter, 1/4-Inch Shank
The
beautifully crafted dovetail joint is a classic that appeals to both
professionals and novices alike. Admired for its attractiveness in box
and exposed joint projects, the dovetail is remarkably strong and
functional. CMT dovetail bits are available in 25 different sizes so
you can stretch your creativity to the limit. See the illustrations on
the next page for dovetail joinery possibilities. CMT dovetail bits are
designed to fit all popular jigs including Leigh, Keller, JoinTECH and
Omnijig systems. You are sure to find the bit you are looking for in
our vast selection of cutting sizes and angles. Check the overall
length of the bit before placing an order to be sure you get the size
you need - CMT makes bits specifically to fit on jigs and routers that
require a longer shank length.
Shop Tips:
Two passes are recommended when routing dovetails with a template.
Check that the dovetails have been cut through completely and smoothly
before removing the workpiece. For even easier routing and less stress
on your dovetail bit, run the first pass with a straight bit. Use a
dovetail on your router table equipped with a fence to achieve
difficult chamfer angles.
Safety Tips:
If a dovetail bit jams while working, adjust the position of the bit in
the collet and make sure the cutting depth is correct. Do not lift the
router out of the template.

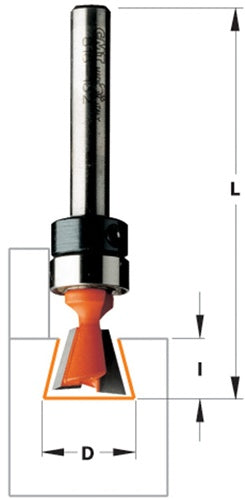

Shank: 1/4" Cutting:3/4" Diameter: 7/16" Length: 2-5/8"
