Freud Tools 1-1/2" (Dia.) Rail & Stile Profile Bit
$68.97

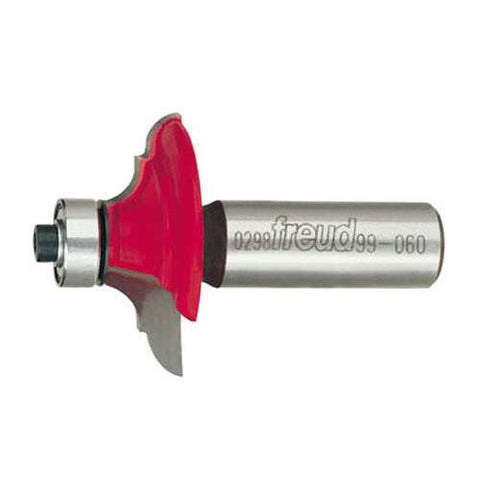

Freud 99-060 Rail & Stile Profile Router Bit with 1-1/2" Overall Diameter
Aplication: Creates rail and stile doors matched reverse profiles
- 99-060 and 99-061 bits cope and stick cut the rails and stiles, and also can be used alone to form a matching edge profile. 99-062 cuts the panel slot and the back of the tongue on the coped piece.
- Cuts all composition materials, plywoods, hardwoods, and softwoods.
- Use on hand-held and table-mounted portable routers.
Overall Diameter (D): 1-1/2"
Bearing Diameter (B):
Bearing Type:
Carbide Height (h): 7/16"
Cut Depth(c):
Minor Height(m): 1/16"
Small Diameter(n) :1"
Radius ( R ): 7/32"
Large Radius (R1):
Small Radius(R2):
Angle (d):
Shank Diameter (A) :1/2"
Overall Length(H) :2-1/4"
