Freud Tools 1-11/32" (Dia.) Window Sash & Rail Bit
$93.97

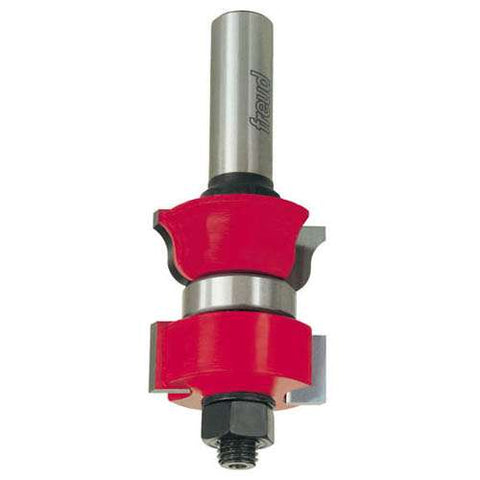

Freud 99-051 Window Sash & Rail Router Bit with 1-11/32" Overall Diameter
Aplication: Two bits work together to produce a complete divided lite sash
- 99-050 copes the rails, sash bars and muntins, while 99-051 cuts the profile on all components. Includes instruction manual.
- Cuts all composition materials, plywoods, hardwoods, and softwoods.
- Use on table-mounted portable routers
Overall Diameter (D): 1-11/32"
Bearing Diameter (B): 22mm
Bearing Type:
Carbide Height (h): 1-25/64"
Cut Depth(c):
Minor Height(m): 17/32"
Small Diameter(n) :
Radius ( R ): 1/4"
Large Radius (R1):
Small Radius(R2):
Angle (d):
Shank Diameter (A) :1/2"
Overall Length(H) :3-7/16"
