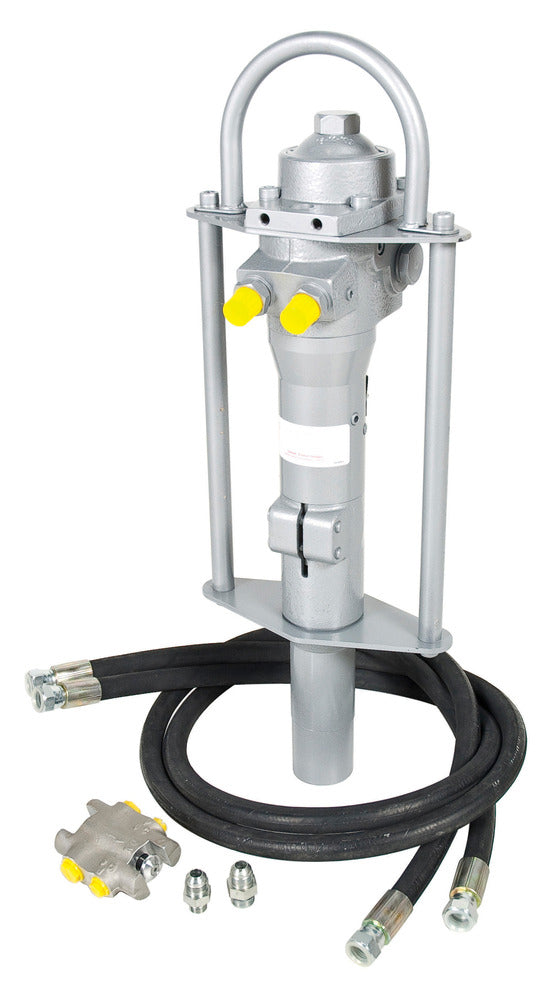

Greenlee HRD-1 Ground Rod Driver 1" (25 mm) Opening
$4,076.77
Greenlee HRD-1 Ground Rod Driver 1" (25 mm) Opening
- A deep rod opening and smooth operation ensures that the driver will not jump off of rods
- Light weight allows easy mounting on top of rods
- Can be used with Open- andClosed-Center hydraulic systems
- Dual guide rods provide excellent control for driving rods straight, and the remote on/off valve makes it easy to control the depth of the rod
| Accessory | 54923 UPC 54923 HTMA Male Coupler, 54924 UPC 54924 HTMA Female Coupler |
| Blow Energy | 63.000 FT-LB (85 J) |
| Blow Frequency | 1740/MINT At 8 GPM (30 LPM) |
| Hose Length | 70.000 IN (178.000 CM) |
| Hydraulic Flow Range | 5 - 8 GPM (19 - 30 LPM) |
| Hydraulic System | Open And Closed-Center |
| Jaw Opening | 1.000 IN (25.000 MM) |
| Length | 25-1/2 IN (654.000 MM) |
| Maximum Input Pressure | 2000 PSI (138 BAR) |
| Pressure Port | 9/16-18 SAE O-Ring On/Off Valve |
| Replacement Part | 02872 UPC 02872 70 IN Hose Assembly, 111952 UPC 40290 Remote Valve |
| Return Port | 3/4 - 16 SAE O-Ring On/Off Valve |
| Type | HRD Ground Rod |
| Weight | 45.000 LB (20.500 KG) Power Unit Only, 53.000 LB (24.000 KG) With Hoses And Control Valve |
