• Compact, under 12 IN (300 mm) diameter to easily fit into small areas
• Self-priming submersible pump can be placed and operated quickly
• Passes up to 3 IN (76 mm) solids minimizing pump blockage from debris
• Can be run dry without damage for longer working life
• Carry handle with lifting eye makes it easy to transport, move, lift, and lower
• Locking coupler for discharge hose included
• Can draw water down to depth of 2-3/4 IN (70 mm)

Accessory	49499, 3.000 IN Diameter X 25.000 FT Discharge Hose Assembly
Accessory	F020196K, HTMA Female Coupler - 1/2 IN NPTF internal thread
Accessory	F020197K, HTMA Male Coupler - 1/2 IN NPTF internal thread
Capacity	Up To 500 GPM (1893 LPM) (At 8 GPM (30 LPM) And A 15.000 FT(4.500 MR) Head Height)
Discharge Size	3.000 IN (76.200 MM) NPT Female
Flow Rate	7 - 10 GPM (26.5 - 37.9 LPM)
Height	14.180 IN (360.000 MM) Over Handle
Operating Pressure	0 - 2000 PSI (0 - 138 BAR)
Pressure Port	1/2 IN Male NPTF
Return Port	1/2 IN Male NPTF
Suction Size	3.125 IN (79.400 MM)
System	Open and Closed Center System
Trash Diameter	3.000 IN (76.000 MM)
Type	Trash, Hydraulic
Weight	28.000 LB (11.700 KG)
Width	11.870 IN (301.000 MM)

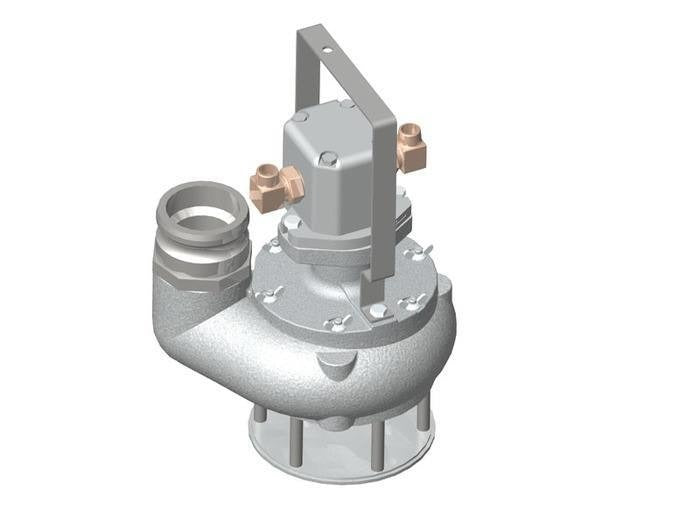

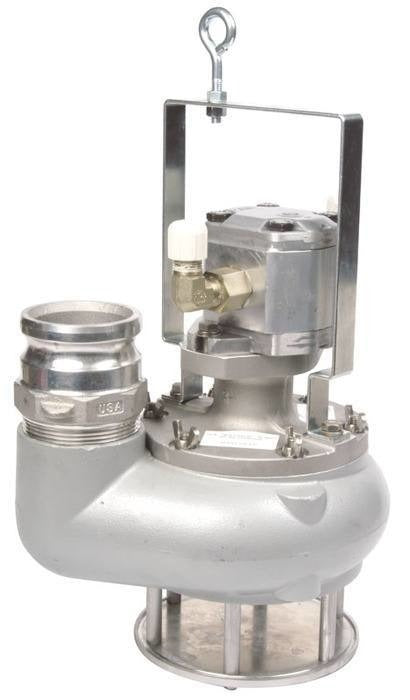

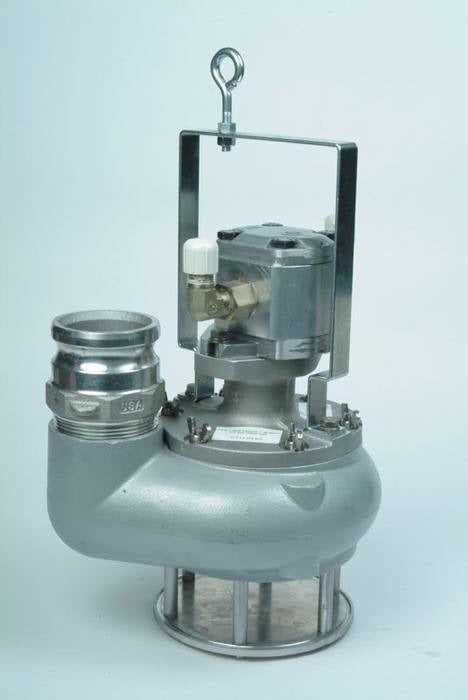

Greenlee H4635 Hydraulic 3" Trash Pump
