JET JLP-A Series lever hoists combine safety, reliability, and durability that are designed to perform in light to medium-duty industrial applications. The patented Brake Wear Indicator increases safety by letting you know when to replace the friction disks. JET also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading. The JET JLP-A lever hoist is available in 1/4 ton to 6 ton capacities with standard lifts of 5, 10, 15, and 20 feet (custom lifts available). The JET JLP-A Series is the perfect choice for a contractor grade lever hoist.

• Safety
• NEW! Innovative brake wear indicator provides a visual indication when the friction disks are worn and need replacing
• NEW! JETs improved easy free chain design is a two-step, no load, free chaining system. The system permits quicker hoist positioning and take up of slack chain, and is engineered not to free chain under load
• The Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security and increased safety
• Shipyard Hooks are blunt tip hooks, designed for point loading and virtually eliminate stretched hooks, reducing downtime for maintenance and repair
• NEW! Redesigned ergonomic grip allows for greater operator control and increased comfort
• Durability
• Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
• Grade 80 black oxide coated for added durability
• Needle bearings support the load sheave to increase efficiency and promote smooth operation
• Impact resistant all steel construction for added durability and protection
• Standards
• This product complies with ANSI / ASME B30.21 and HST-3 standards
• Load tested to 125% of capacity with certificate

• Load Capacity (Tons) 3
• Lift (Ft.) 5
• Overload Protection No
• Ship Yard Hooks Yes
• Headroom (In.) 18-8/9
• Handle Length (In.) 16-1/7
• Lever Pull Force (LBF) 71
• Lift per Turn (In.) 2/3
• Number of Falls 1
• Load Chain Dimensions (Mm.) 10 x 30
• Hook Throat Opening (In.) 2-1/2
• Overall Width (In.) 7-7/8
• Weight (Lbs.) 43

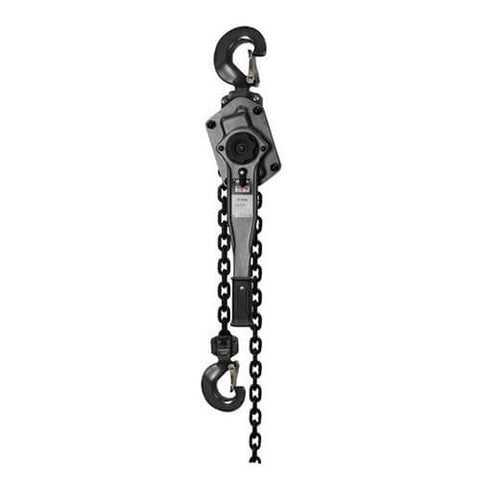

• 1x JLP-A Series 3 Ton Lever Hoist, 5' Lift & Shipyard Hooks
