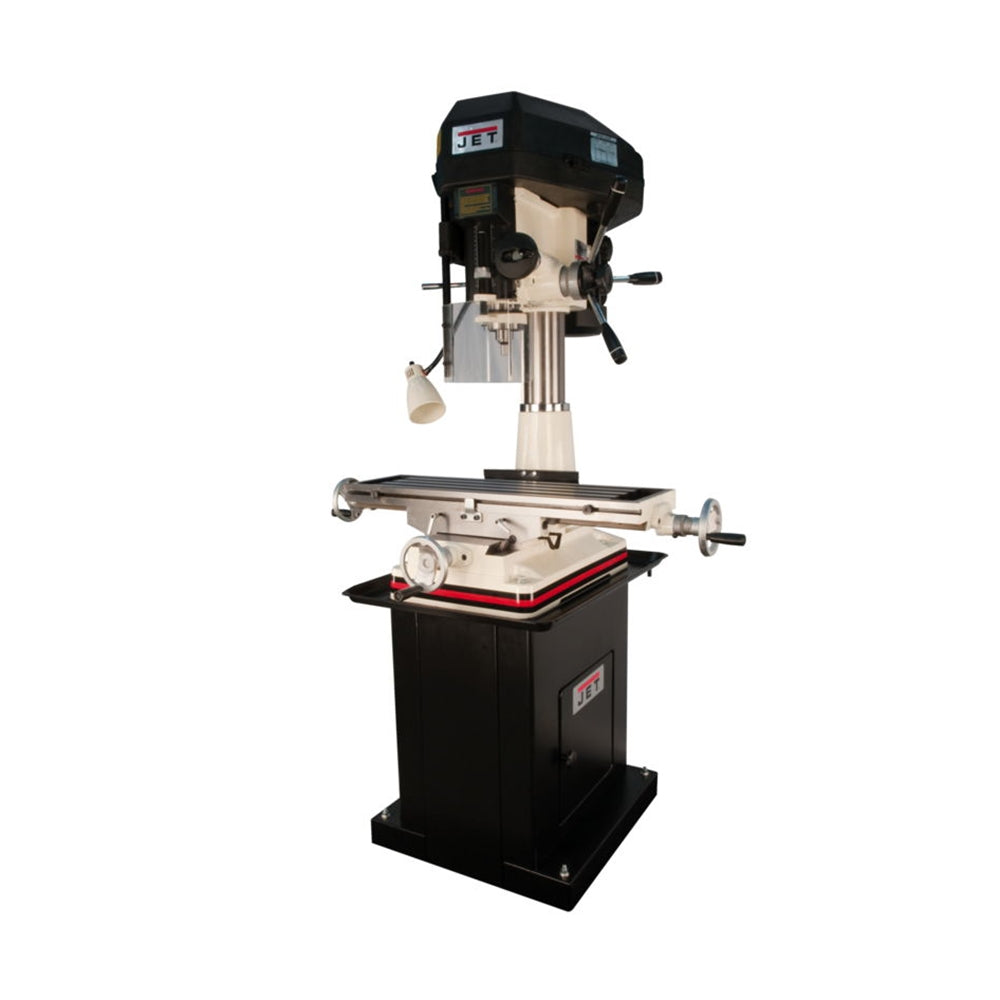

JET 350120 JMD-18 Mill/Drill w/ ACU-RITE VUE DRO
$9,789.00
Jet 350120 JMD-18 Mill/Drill With ACU-RITE VUE DRO and X-Axis Table Powerfeed
- Powerfeed X-Axis
- Digital Readout ACU-RITE VUE
- Drilling Capacity (In.) 1-1/4
- Face Mill Capacity (In.) 3
- End Mill Capacity (In.) 3/4
- Swing (In.) 15-7/8
- Max Distance Spindle to Table (In.) 18
- Spindle Taper (In. x TPI) R-8
- Spindle Travel (In.) 5
- Quill Diameter (In.) 3
- Column Diameter (In.) 4-1/2
- Number of Spindle Speeds 12
- Range of Spindle Speeds (RPM) 150 - 3,000
- Table Size (L x W) (In.) 9-1/2 x 32-1/4
- Table Longitudinal Travel (In.) 20-1/2
- Work Table Weight Capacity (Lbs.) 400
- T-Slots Number and Size (In.) 4, 5/8
- T-Slot Centers (In.) 1-13/16
- Base Dimensions (In.) 15-3/4 x 23-3/4
- Motor (HP) 2 HP, 230V Only, 1 Ph
- Overall Dimensions (L x W x H) (In.) 47 x 40 x 51
- Weight (Lbs.) 700
| Powerfeed | X-Axis |
| Digital Readout | ACU-RITE VUE |
| Drilling Capacity (In.) | 1-1/4 |
| Face Mill Capacity (In.) | 3 |
| End Mill Capacity (In.) | 3/4 |
| Swing (In.) | 15-7/8 |
| Max Distance Spindle to Table (In.) | 18 |
| Spindle Taper (In. x TPI) | R-8 |
| Spindle Travel (In.) | 5 |
| Quill Diameter (In.) | 3 |
| Column Diameter (In.) | 4-1/2 |
| Number of Spindle Speeds | 12 |
| Range of Spindle Speeds (RPM) | 150 - 3,000 |
| Table Size (L x W) (In.) | 9-1/2 x 32-1/4 |
| Table Longitudinal Travel (In.) | 20-1/2 |
| Work Table Weight Capacity (Lbs.) | 400 |
| T-Slots Number and Size (In.) | 4, 5/8 |
| T-Slot Centers (In.) | 1-13/16 |
| Base Dimensions (In.) | 15-3/4 x 23-3/4 |
| Motor (HP) | 2 HP, 230V Only, 1 Ph |
| Overall Dimensions (L x W x H) (In.) | 47 x 40 x 51 |
| Weight (Lbs.) | 700 |
