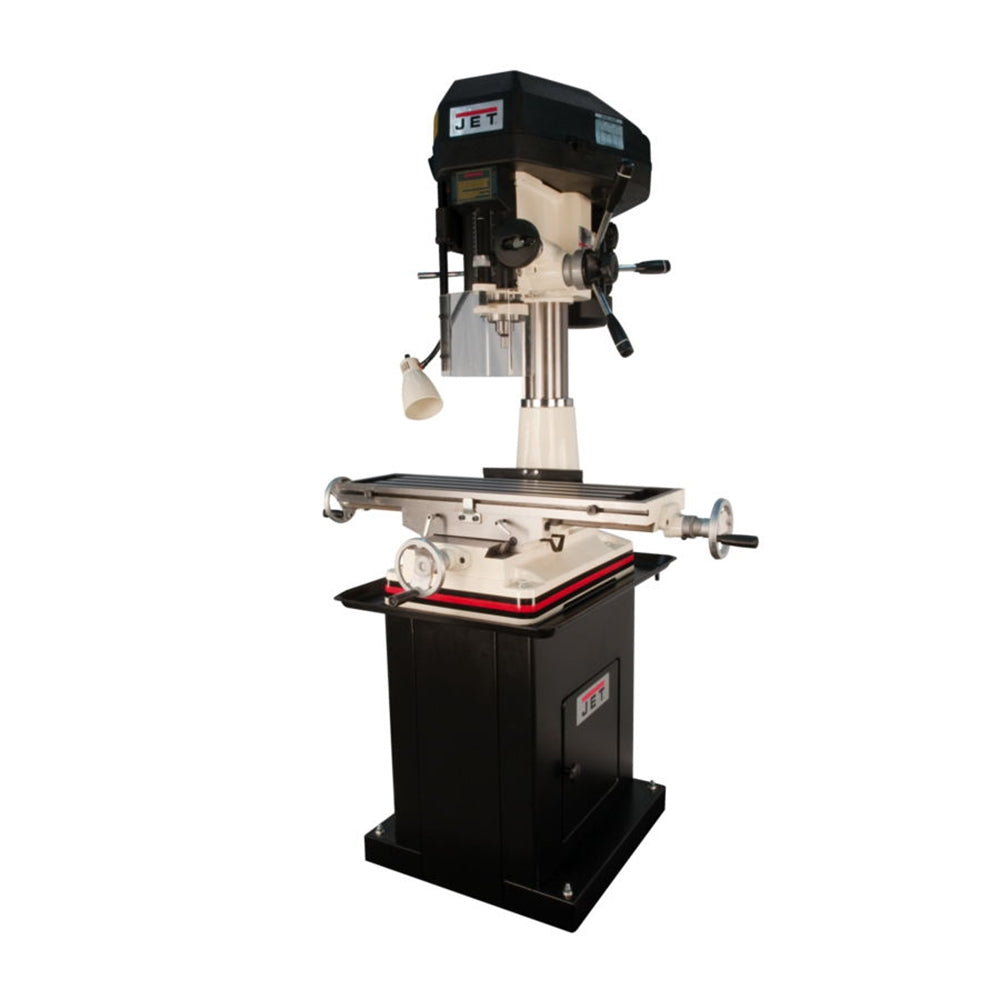

JET 350402 JMD-18PFN Mill/Drill w/ ACU-RITE VUE DRO
$8,249.00
Jet 350402 JMD-18PFN Mill/Drill With ACU-RITE VUE DRO
- For added safety, the JMD-18PFN follows strict guidelines and electrical requirements to be certified by CSA Group
- One-piece cast iron column for added support
- Belt cover with quick slide latch allows faster belt adjustment to change spindle speeds
- Base taper allows for easier clean up
- Drill Press angle vise
- UL Listed motor
- Extra large worktable
- New positive quick-stop knob and easy to read internal depth gauge (external on JMD-15)
- 360 deg head swivel
- Work lamp
- Heavy-duty power downfeed with manual fine feed (JMD-18PFN)
- 1/2 drill chuck, chuck arbor
- Draw bar
- Drill Chuck Guard
- Adjustable Carbide facemill
| Powerfeed | Down Feed |
| Digital Readout | ACU-RITE VUE |
| Drilling Capacity (In.) | 1-1/4 |
| Face Mill Capacity (In.) | 3 |
| End Mill Capacity (In.) | 3/4 |
| Swing (In.) | 15-7/8 |
| Max Distance Spindle to Table (In.) | 26 |
| Spindle Taper (In. x TPI) | R-8 |
| Spindle Travel (In.) | 5 |
| Spindle Travel Auto (In.) | 4-1/4 |
| Quill Down Feed Rates (IPR) | 0.0047, 0.007, 0.001 |
| Quill Diameter (In.) | 3 |
| Column Diameter (In.) | 4-1/2 |
| Number of Spindle Speeds | 12 |
| Range of Spindle Speeds (RPM) | 150 - 3,000 |
| Table Size (L x W) (In.) | 9-1/2 x 31-3/4 |
| Table Longitudinal Travel (In.) | 24 |
| Work Table Weight Capacity (Lbs.) | 400 |
| T-Slots Number and Size (In.) | 4, 5/8 |
| T-Slot Centers (In.) | 1-13/16 |
| Base Dimensions (In.) | 15-3/4 x 23-3/4 |
| Motor (HP) | 2 HP, 230V Only, 1 Ph |
| Overall Dimensions (L x W x H) (In.) | 47 x 40 x 51 |
| Weight (Lbs.) | 700 |
