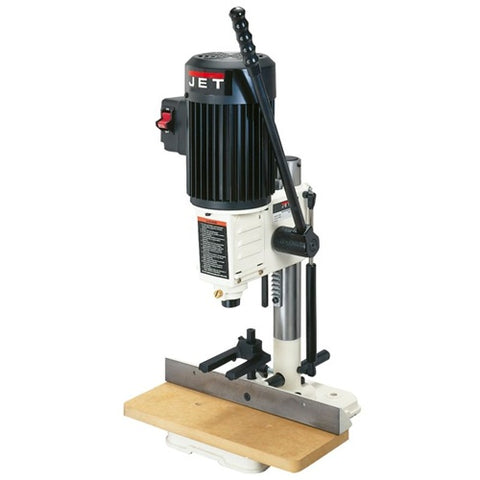

JET 708580 Jbm-5, 1/2Hp Benchtop Mortise Machine, 1/2 in. Capacity, 1725 Rpm
$495.54
$582.99
JET 708580 JBM-5, 1/2Hp Benchtop Mortise Machine, 1/2 in. Capacity, 1725 RPM
- Heavy-duty cast iron and steel construction provides durability and stability during use
- Dependable rack-and-pinion head adjustment gives you accurate drilling control
- Long, multi-position mortising handle let you reposition the feed handle for easier operation and optimum handle position
- Three-jaw drill chuck keeps a positive grip on mortising bits with up to 3/4" diameter shanks
- Two hinged side doors allow easy access to the drill chuck
- Quick adjust depth stop for uniform mortise depths
- Column is reversible for mortising larger stock
- Removable On/Off toggle switch prevents accidental or unauthorized use of the tool
- Powerful 1/2HP motor provides consistently smooth performance
Specifications
| Part Number | 708580 |
| Spindle Speed | 1725 RPM |
| Chuck Size | 3/8 " |
| Chisel Shank Capacity | 5/8, 3/4 " |
| Head Stroke | 4-3/4 " |
| Chisel Center to Fence | 3-1/2 " |
| Under Hold-Down | 4 " |
| Fence Size (L x H) | 1 9/16 x 13 3/4 " |
| Base Size | 7 5/8 x 12 3/16 " |
| Bushing Size | 5/8, 3/4 " |
| Motor Power | 1/2 HP |
| Motor Voltage | 115 V |
| Prewired Voltage | 115 |
| Motor Current | 6 A |
| Motor Phase | 1 Ph |
| Family Description | BENCHTOP MORTISER |
| Model Number | JBM-5 |
| Brand | Jet |
| Height | 11 inch |
| Width | 14.4 inch |
| Length | 22.8 inch |
| Net Weight | 52.45 pound |
