JET 708642Bk Dc-650 Dust Collector w/Bag Filter Kit
$495.54
$582.99

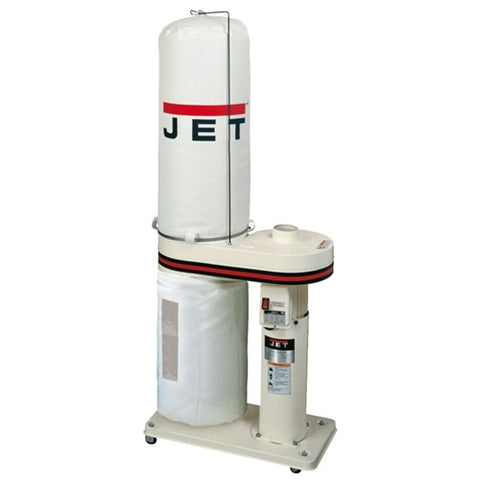

JET 708642BK DC-650 Dust Collector w/Bag Filter Kit
JET Model 650 dust collectors hook up to 1 to 3 machines at a time for optimum dust cleaning. Each 650 series dust collector comes equipped with a quick-install collection bag, single-stage design for economical and quiet operation, 4 casters for maneuverability and total portability, and permanently lubricated, fully enclosed, fan-cooled motors for continuous duty. An optional remote control is radio frequency so there is no need for line of sight to turn the machine on and off.- Hook up one to three machines for optimum dust cleaning
- Quick-install collection bag makes emptying and re-attaching a snap
- Single-stage design for economical and quiet operation
- Includes four casters for maneuverability and total portability
- Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
Specifications
| Part Number | 708642BK |
| Blower Wheel Diameter | 9 1/2 " |
| Sound Rating | 65 - 70 dB |
| 1-Hose Connection Diameter | 4 " |
| Bag Diameter | 14 " |
| Filter Bag/Canister Length | 31 1/2 " |
| Collection Bag Capacity | 2.1 cubic foot |
| Collection Bag Length | 21 1/2 " |
| Air Flow @ 4" | 650 cu.ft/min |
| Static Pressure | 6 1/2 inch of water |
| Particle Size (Micron) | 30 |
| Velocity @ 4" | 7,445 foot per minute |
| Impeller Material | steel |
| Motor Power | 1 HP |
| Motor Phase | 1 Ph |
| Motor Voltage | 115 / 230 V |
| Prewired Voltage | 115 V |
| Motor Current | 11 / 5.5 A |
| Web Description | DC-650 1HP CFM Dust Collector with |
| Model Number | DC-650BK |
| Brand | Jet |
| Overall Dimensions | 27 x 14 x 57 |
| Height | 18 inch |
| Width | 15.5 inch |
| Length | 32 inch |
| Net Weight | 86 pound |
