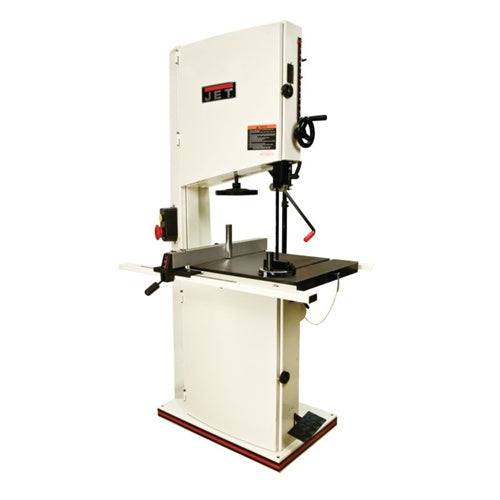

JET 708755B Jwbs-20Qt-5, 20 in. Bandsaw w/ Quick Tension, 5Hp, 1Ph
$3,159.99
Product Code: JET-708755B
JET 708755B JWBS-20QT-5, 20 in. Bandsaw with Quick Tension, 5HP, 1Ph
- Triangular design provides superior column rigidity
- 12-1/4" Resaw capacity for cutting large pieces of wood, slicing veneers and cutting book matched panels
- 21" x 21" precision ground cast iron table for added stability and work support
- 2 Speed poly V-belt drive
- 8-spoke, precision computer balanced wheels eliminate vibration for accurate blade tracking
- Foot brake for rapid stops
- Upper and lower ball bearing, micro-adjustable blade guides for proper support during the cut of different size boards
- Tool-less, independently adjustable ball bearing guide system for quick and easy adjustments and smooth operation
- Rigid, heavy-duty guide post with rack and pinion adjustment for extra blade support
- All cast iron handwheels make smooth, easy blade adjustments with less effort
- 1", 3 TPI woodworking blade is included so you can start cutting right away
- Extra large cast trunnion for better support and stability
- Dual locking cabinet doors allow access to blade when necessary
- Blade tension scale allows precise blade tensioning
- Single knob tracking adjustment simplifies the blade tracking process
- Exclusive quick-release, precision T-square style rip fence with resaw post
- 4" dust port allows for direct connection of dust collection system
| Band Saw Size/Wheel Diameter (In.) | 20-1/2 |
| Cutting Capacity Width (In.) | 20 |
| Cutting Capacity Height (In.) | 12-1/4 |
| Blade Length (In.) | 150 |
| Blade Speed (SFPM) | 1800/3200 |
| Table Size (L x W) (In.) | 21 x 21 |
| Maximum Saw Blade Width (In.) | 1-1/2 |
| Minimum Saw Blade Width (In.) | 1/8 |
| Table Tilt (Deg.) | 10 L, 45 R |
| Table Height from Floor (In.) | 36-1/8 |
| Miter Gauge Positive Stops | 45 R, 90 R |
| Dust Collection Minimum CFM Required (CFM) | 400 |
| Dust Port Outside Diameter (In.) | 4 |
| Motor Power (HP) | 5 |
| Stand Type | Closed |
| Motor Phase (PH) | 1 |
| Motor Amps | 15 |
