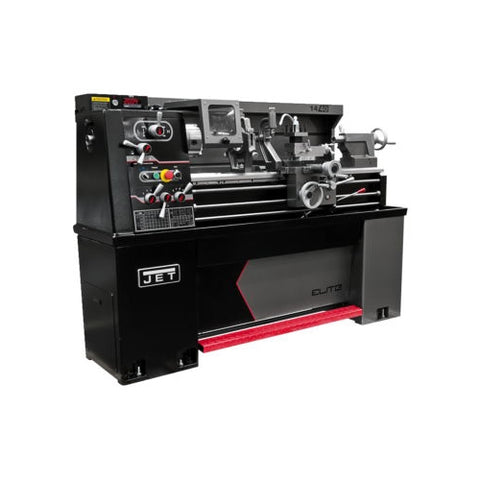

JET 892030 E-1440VS, Elite 14x40 EVS Lathe
$20,239.00
Product Code: JET-892030
JET 892030 E-1440VS, Elite 14x40 EVS Lathe
The JET 892020 E-1240VS, Elite 13x40 EVS Lathe packs large lathe packs large lathe features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring an Electro-magnetic brake, 3 Jaw Chuck, ball bearing-mounted steady & follow rests and CNC Style Lighting with enclosed splash guard, these lathes are CSA / CUS Certified, and truly are Elite!
- Electromagnetic assisted foot brake for rapid braking
- Inverter drive system provides infinitely variable spindle speeds
- Steady and follow rest feature double sealed ball bearing guides for smooth material movements
- Chuck guards are standard equipment on all ELITE lathes for increased safety
- Front facing chip pan allows easy chip removal from the front of the machine
- 1-1/2" Spindle Bore
- Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
- Hardened and ground gears in headstock reduce vibration and deflection
- Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004
- Fully lit with CNC style lighting, the enclosed full length splash guard is expertly designed to contain all chips and coolant
- Overload clutch at feed shaft prevents the carriage from crashing into the chuck
- Certified Meehanite castings retain their tolerances and remain rigid through many years of machining
- Heavy-duty stand with full length foot brake
- LED RPM readout allows for precise turning speeds
- For added safety, the E-1440VS Lathe follows strict guidelines and electrical requirements to be certified by CSA Group
- Standard Equipment
- 6" 3-Jaw chuck
- 10" Faceplate for 12" Lathes
- 12" Faceplate for 13 & 14" Lathes
- Steady Rest-Ball Bearing
- Follow Rest- Ball Bearing
- 4-Way Tool Post
- Chuck Guard
- 4-Position Carriage Stop
- Threading Dial
- Coolant System
- Center Sleeve
- Dead Center
- Leveling Pads
- Tool Box With Tools
- Size - 14 x 40
- Swing Over Bed (In.) - 14
- Swing Over Cross Slide (In.) - 8-5/8
- Swing Through Gap (In.) - 20
- Length of Gap (In.) - 9
- Distance Between Centers (In.) - 40
- Spindle Bore (In.) - 1-1/2
- Spindle Mount - D1-4
- Spindle Taper with Sleeve - MT5
- Number of Spindle Speeds - Variable
- Range of Spindle Speeds (RPM) - 0 - 2,200
- Number of Longitudinal and Cross Feed Rates - 80
- Range of Longitudinal Feeds(IPR) - 0.0012 - 0.0294
- Range of Cross Feeds (IPR) - 0.0003 - 0.01
- Number of Inch Threads - 40
- Range of Inch Threads (TPI) - 4 - 112
- Number of Metric Threads - 22
- Range of Metric Threads - 0.45 - 7.5
- Max Tool Size (In.) - 7/8 x 7/8
- Compound Slide Travel (In.) - 4
- Cross Slide Travel (In.) - 7
- Tailstock Spindle Travel (In.) - 5
- Taper in Tailstock Spindle - MT3
- Follow Rest Capacity (In.) - 1/4 - 2-3/8
- Steady Rest Capacity (In.) - 1/4 - 2-3/4
- Width of Bed (In.) - 8-1/2
- Motor (HP) - 3 HP, 230V, 3Ph
- Ampearge Draw @ 230V 3Ph - 9
- Coolant Pump Motor - 1/8 HP
- Weight (Lbs.) - 1653
- Overall Dimensions (L x W x H) (In.) - 77 x 30 x 58
- Drive - EVS
- Style (Type) - ELITE EVS
