Klein 16499 Wide Range Transmission Grip
$415.18
Product Code: KLE-16499
Usually Ships Within 24 Hours
Title
$415.18

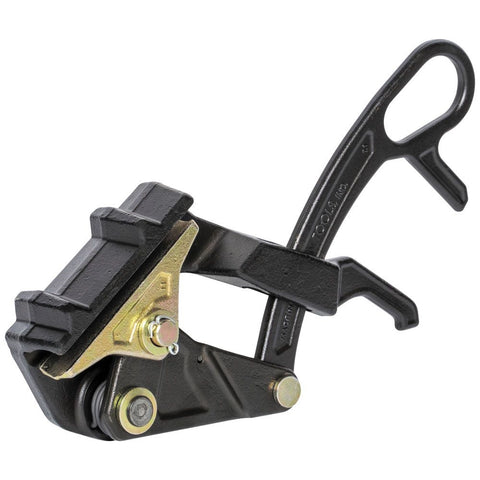

Klein 16499 Wide Range Transmission Grip

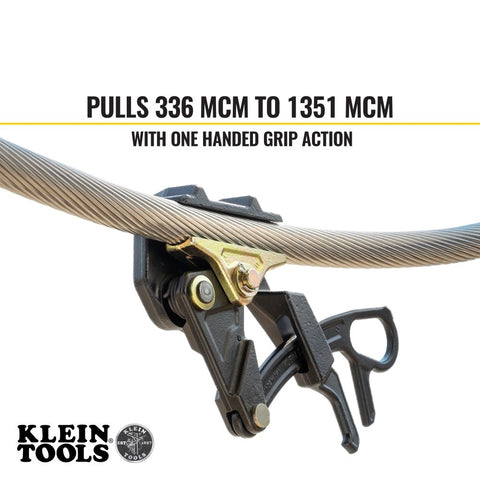

The Klein Wide Range Transmission Grip was specifically designed to securely pull ACSR, AAC and bare copper cables. Holds a wide range of cable from 0.68-Inch to 1.42-Inch (17.3 mm to 36.1 mm). This grip has a maximum safe load of 12,000-Pound (5443 kg).
- Securely pulls ACSR, AAC and bare copper cables
- Holds cable sizes from 0.68-Inch to 1.42-Inch (17.3 mm to 36.1 mm)
- Fine Sawtooth jaw geometry provides greater grip strength
- Spring closes grip on cable to hold the initial position
- Made in the USA
- Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks
- Max Safe Load of 12,000-Pound (5443 kg)
- Patent pending design
- Locking Handle: Y
- Standard:
- Overall Height: 8.1 ft. ft. (20.6 cm)
- Type: Parallel Jaw Grip
- Cable Diameter: 0.68 ft. ft. to 1.42 ft. ft. (17.3 to 36.1 mm)
- Swing Latch: N
- Special Features: One-Handed Grip
- Spring: Y
- Jaw Type: Round
- Overall Width: 2.4 ft. ft. (6.1 cm)
- Jaw Length: 4.85 ft. ft. (12.3 cm)
- Material: Steel
- Maximum Safe Load: 12,000 lb (5443 kg)
- Cable Type: ACSR, AAC, Bare Copper
- Hot Latch: N
- Weight: 8.1 lb (3.7 kg)
- Overall Length: 13.1 ft. ft. (33.3 cm)
- Application: Wire Pulling
- Notes:
(1) Klein 16499 Wide Range Transmission Grip
