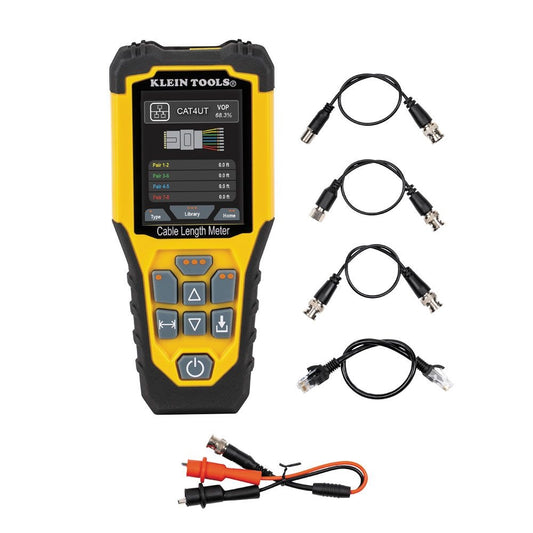

The Klein Cable Length Meter is a portable Time Domain Reflectometry (TDR) cable length tester. It measures cable length, calibrates Velocity of Propagation (VoP) values, finds distance to faults in cables, and provides built-in tone generation for cable tracing. This tester provides accurate cable length measurement for a wide variety of cable types at an affordable price. Includes test leads and a carrying case.

• Cable length meter measures length of electrical, data, two-wire and Romex cables up to 3000 feet (914 m)
• TDR technology measures Distance-to-Fault, Open or Short, on terminated or unterminated cable
• Programmed with Velocity of Propagation (VoP) values for Coax, Data, Romex and other multiwire cables for accurate length measurement within +/-(2-Percent plus 3-Foot/0.9 m) accuracy
• Stores custom cable VoP values for consistently accurate results and time savings
• Simple interface with full color, interactive LCD
• Tones unenergized, open-ended wires for wire tracing (requires Analog Probe (Cat. No. VDV500-123, sold separately)
• Coax-BNC or high quality alligator clips for quick, easy connection to test most cable types
• RJ45 jack for accurate length measurement of terminated data cables
• Measurements can be switched between and metric and imperial units
• Includes padded carrying case and leads

• Battery Life: Active: Approx 15 hr; Standby: Approx 3 yr.
• Drop Protection: 6.6 ft. (2 m)
• Supported Remotes:
• Location ID:
• Display: Backlit LCD
• Cable Type: Coaxial, Data, Electrical
• Special Features: Velocity of Propagation Range: 20 to 99.9%
• Material: ABS Plastic
• Weight: 7.6 oz (215 g) without batteries
• Included: TDR Cable Length Meter, Batteries, Test Leads, Carrying Pouch
• Connection & Adapter Types: Alligator clips, Female Coax-F, Male Coax-F, RJ45, BNC
• Type: Cable Meter
• Batteries: 2 × AA Alkaline
• Test-n-Map ID Remotes:
• Test & Measure Types: Length, Distance-to-Fault
• Faults Detected: Distance-to-Fault, Open or Short
• Multiple Style Tone Generator: Two Tones
• Application: Cable Length Measurement
• Overall Height: 6.2 ft. ft. (15.7 cm)
• Overall Length: 2.7 ft. ft. (6.9 cm)
• Overall Width: 1.4 ft. ft. (3.6 cm)
• Standard:

(1) Klein 501-915 TDR Cable Length Meter
