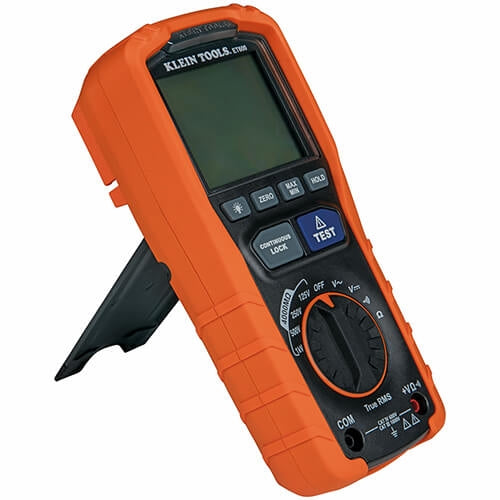

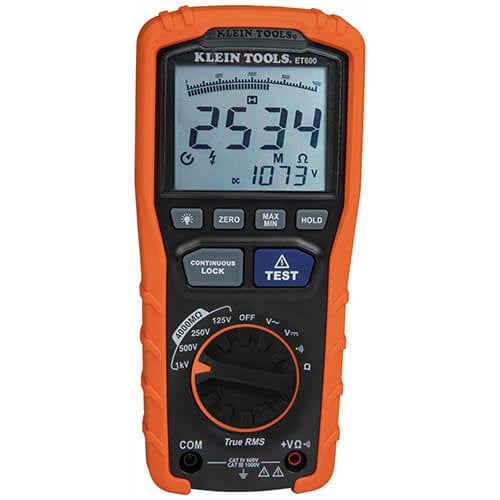

The ET600 is a multi-function Megohmmeter capable of producing 125V, 250V, 500V, and 1000V test voltages for insulation resistance measurements up to 4000M?. Also tests AC/DC voltages up to 1000V with automatic ranging True RMS technology. Convenient lock function and built-in stand for hands free operation. Dual-function backlit display monitors process.

Voltage Tester tests insulation resistance up to 4000M? at 125V, 250V, 500V, and 1000V DC

Megohmmeter with test and lock buttons for simple insulation testing

Warning alarm and high voltage icon for detection of voltage

Measures up to 1000V AC/DC, resistance, and continuity

Automatic ranging True Root Mean Square (TRMS) technology for increased accuracy

Backlit display with bar graph, Auto-power off, High Voltage, Max/Min, and Hold icons

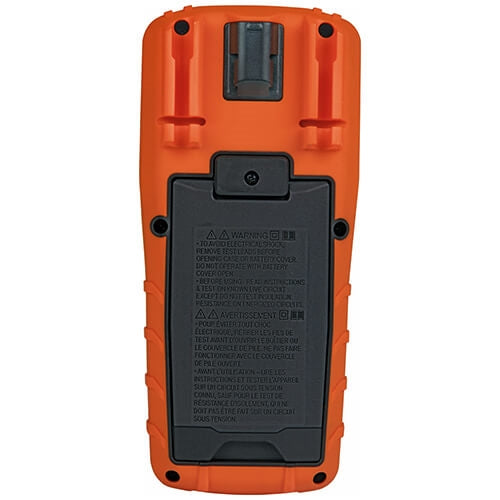

Low battery indicator with easily replaceable battery and fuse

Built-in stand and optional magnetic hanger for hands free operation

Test verification of conformity to EN61557-1,-2,-4

CAT IV 600V and CAT III 1000V safety rating

• Drop Protection: -
• Special Features: Lock Button for Insulation Resistance Testing
• Material: ABS, Polycarbonate, Electrical Components
• Overall Length: 7.93"" (20.2 cm)
• Weight: 1.4 lb (0.6 kg)
• Overall Height: 2.32"" (5.9 cm)
• Color: Orange/Black

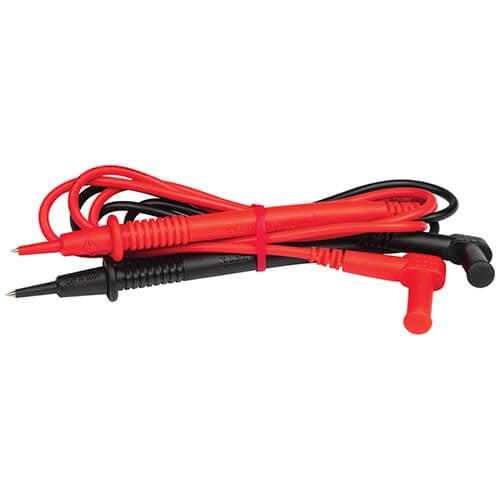

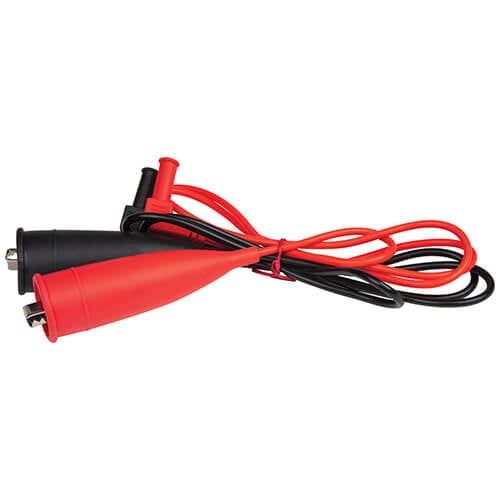

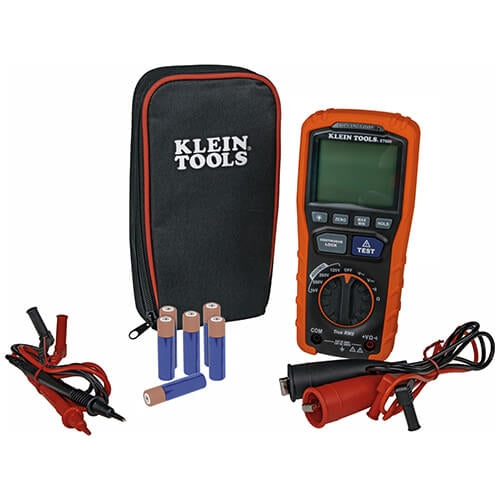

• Included: CAT III/CAT IV Safety Rated Test Leads, Heavy-duty Alligator Clip Test Leads, Batteries, Carrying Case, and Instruction Manual
• Frequency: -
• Temperature Range: -
• Display: 4000 Count LCD
• Capacitance: -
• Ohms (Resistance): 4000M?
• Current: -
• Overall Width: 3.59"" (9.1 cm)
• Voltage: 125V, 250V, 500V, and 1000V DC; 1000V AC/DC
• Ingress Protection: -
• Standard: CAT IV 600V/CAT III 1000V, EN61557-1, EN61557-2, EN61557-4
• Type: Insulation Resistance Tester

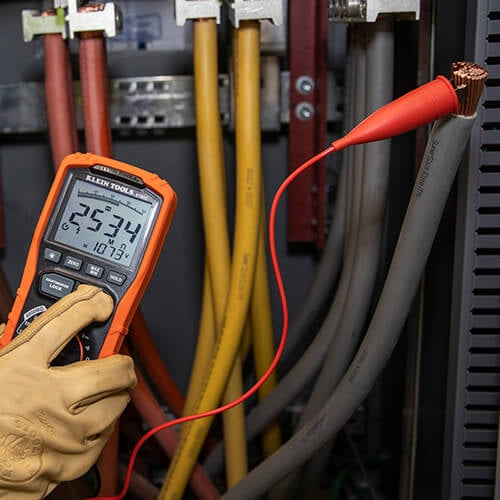

• Application: Installation, Troubleshooting, and Preventive Maintenance of Electrical Wiring and Electrical Equipment, Measures 1000V AC/DC, Resistance, and Continuity
• Functions: Insulation Resistance, Voltage AC/DC, Resistance, and Continuity
• Batteries: 6 x AA

(1) Klein Tools ET600 Insulation Resistance Tester
