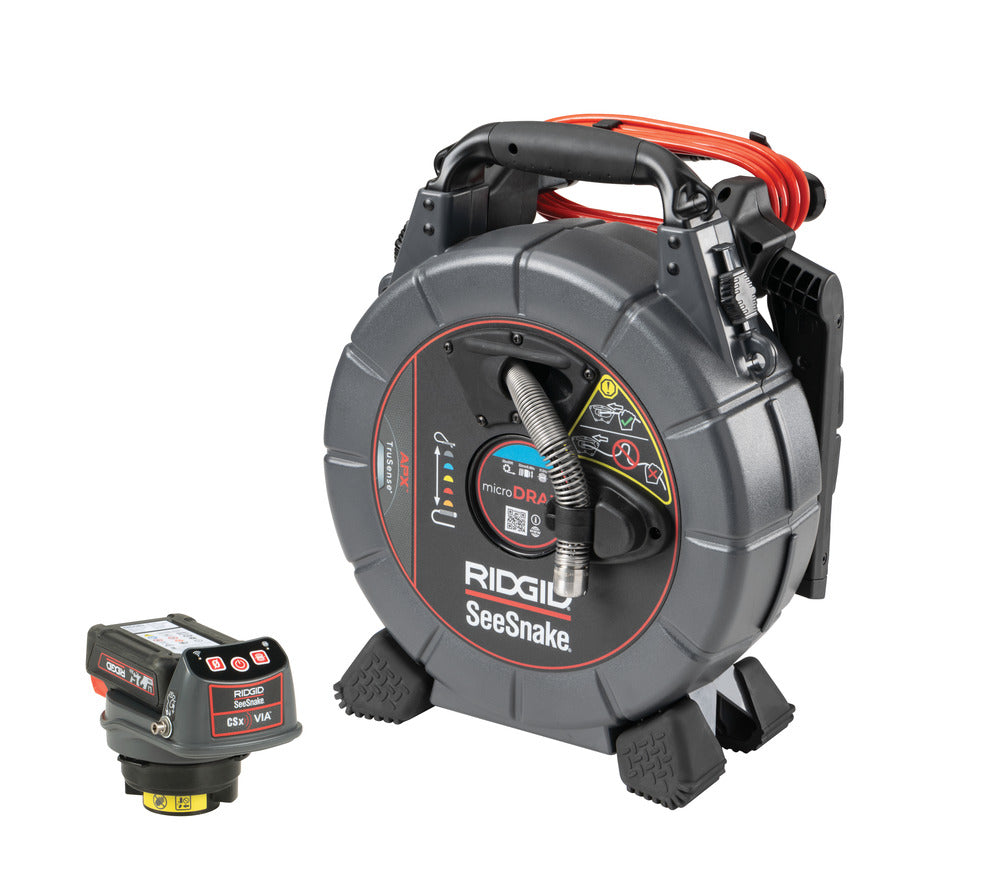

The RIDGID SeeSnake® microDRAIN APX™ with TruSense is the ideal pipe inspection camera for small pipes and conduits with tight turns. The advanced, high-flexibility push cable and a small-radius camera design allows inspection through small-diameter pipes, p-traps, and small-radius ends that other inspection systems often cannot inspect. It offers enhanced camera functionality including TruSense technology and auto-image rotation for bright, clear in-pipe images and on-screen camera angle and image orientation feedback. The microReel APX includes a kickstand for use with the CSx Via™, and offers enhanced stability and usability when positioned at a 45° angle.

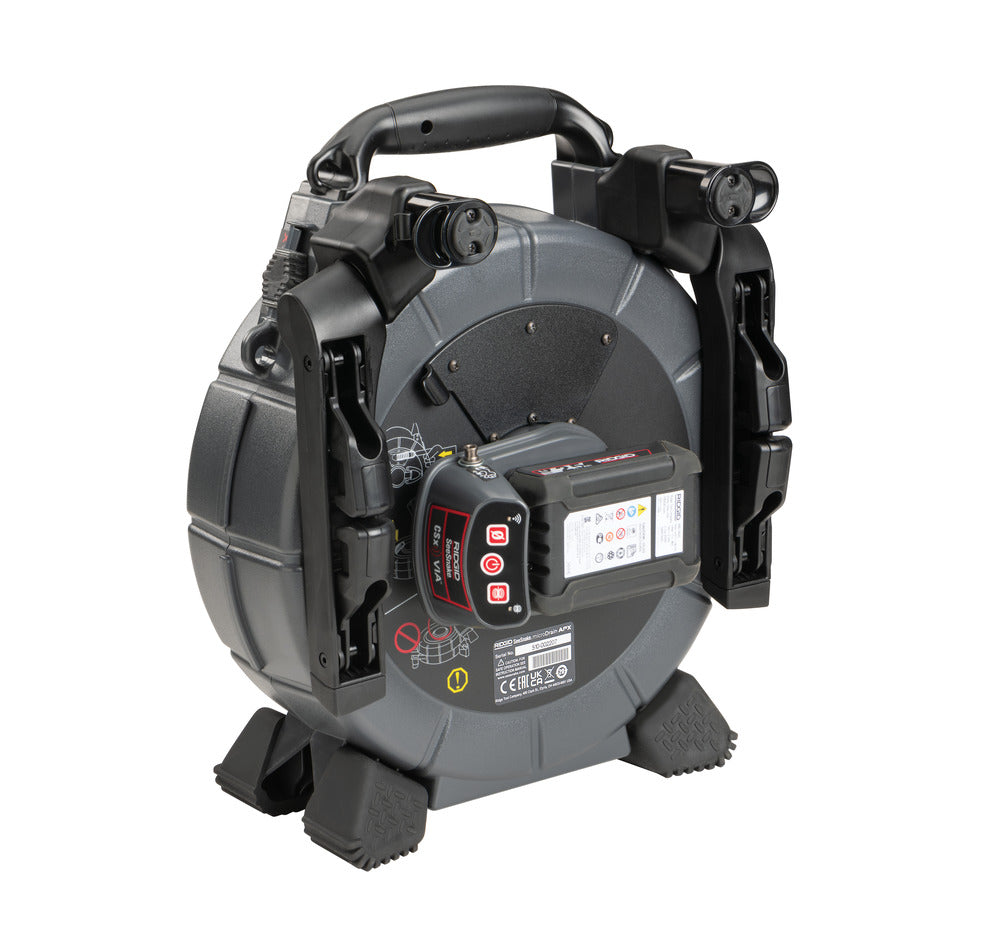

This offering is paired with the CSx Via for a flexible, bring-your-own-screen solution, providing a convenient means to stream, capture, and share superior inspection images using an iOS, Android, or Windows device. The CSx Via utilizes the free HQx® Live app to remotely control the camera functions and features, such as the distance counter and the sonde. CSx Via is also compatible with TruSense® SeeSnake systems and will enable TruSense features in the app. It offers enhanced camera functionality including TruSense technology and auto-image rotation for bright, clear in-pipe images and on-screen camera angle and image orientation feedback.

• Enhanced Camera Functionality - APX camera reels offer TruSense technology with an HDR image sensor for superior in-pipe viewing and on-camera TiltSense inclinometer.
• Auto-Image Flip - Rotates camera image wihout any moving parts.
• Portability - Lightweight and compact design is one-half the size of popular inspection systems, easily stowed in a truck and carried onto the jobsite.

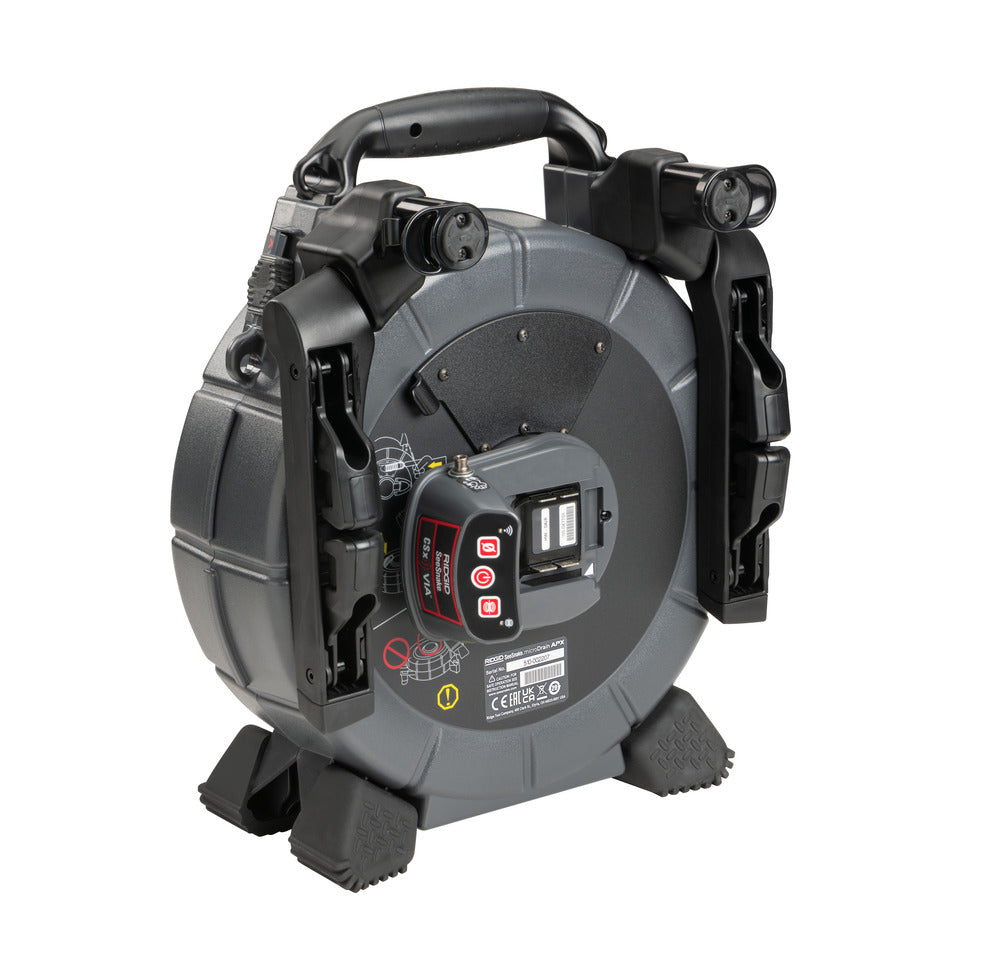

• Stability - Built-in kickstand for improved ergonomics can be used uprigt, at a 45 degree angle for improved leverage on four feet to provide clearance for use with CSx Via
• Durability - Hardened stainless steel camera head and spring assembly is durable and reliable for a long service life.
• Versatility - Works with all SeeSnake monitors, including CSx Via Wi-Fi Hub, or the CA-350 inspection camera (CA-350 adapter sold separately).
• HQx Live - Rapid communication by email, text or upload photos and videos to customers or colleagues in real time, directly from the job site.

Camera Diameter	22 mm
Camera Type	Auto-Image Flip
Resolution	640 x 480 pixels
Line Capacity	1 1/4" to 3" (32 mm to 75 mm)
Push Cable Length	65 ft (20 m)
Push Cable Diameter	0.33" (8.3 mm)
Cable Flexibility	High Flex
Push Cable Minimum Bend Radius	.75" (19.1 mm)
Sonde	512Hz, Integrated
Weight	11.6 lbs (5.25 kg)
Length	13.3 in (337 mm)
Width	8.8 in (224 mm)
Height	16.2 in (411 mm)
Drum Diameter	12 in (305 mm)
CSx Via Dimensions	5.9" (14.9 cm) x 4.2" (10.6 cm) x 4.9" (12.4 cm)

(1) RIDGID 80643 microDRAIN APX & CSx Via System
