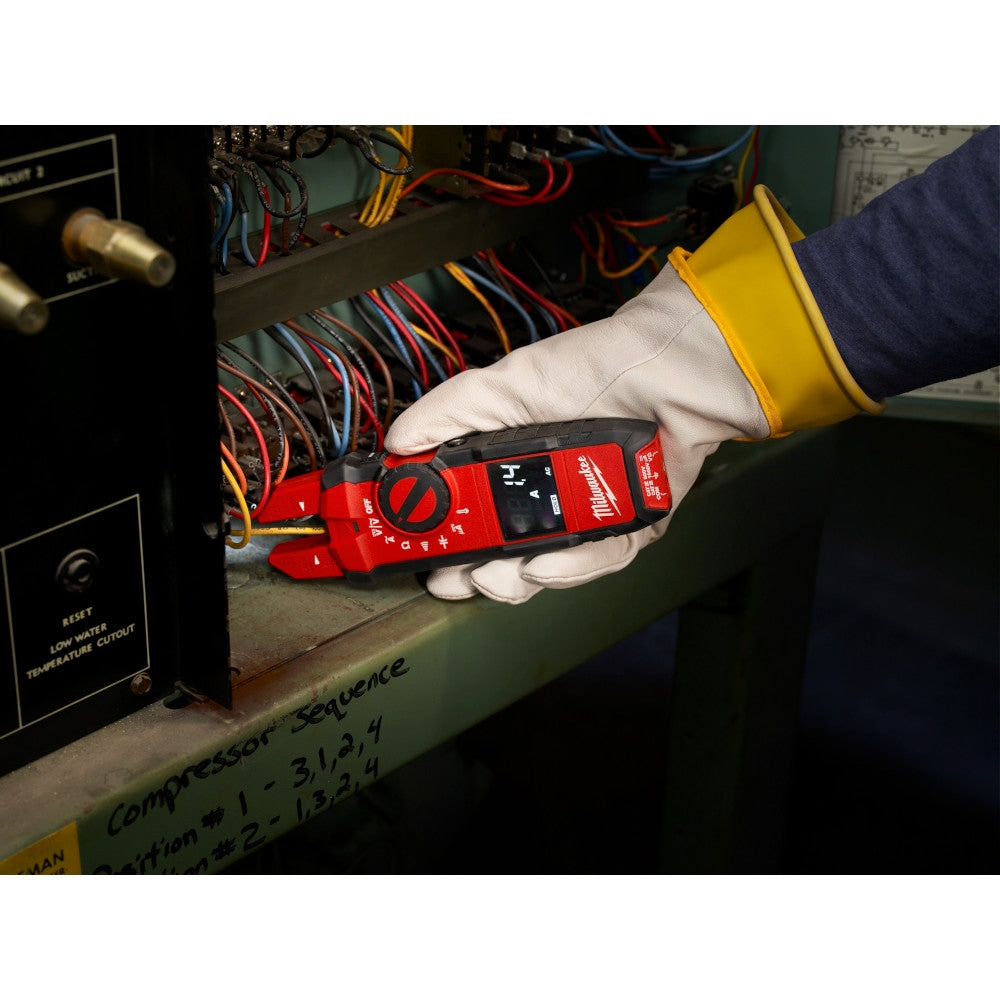

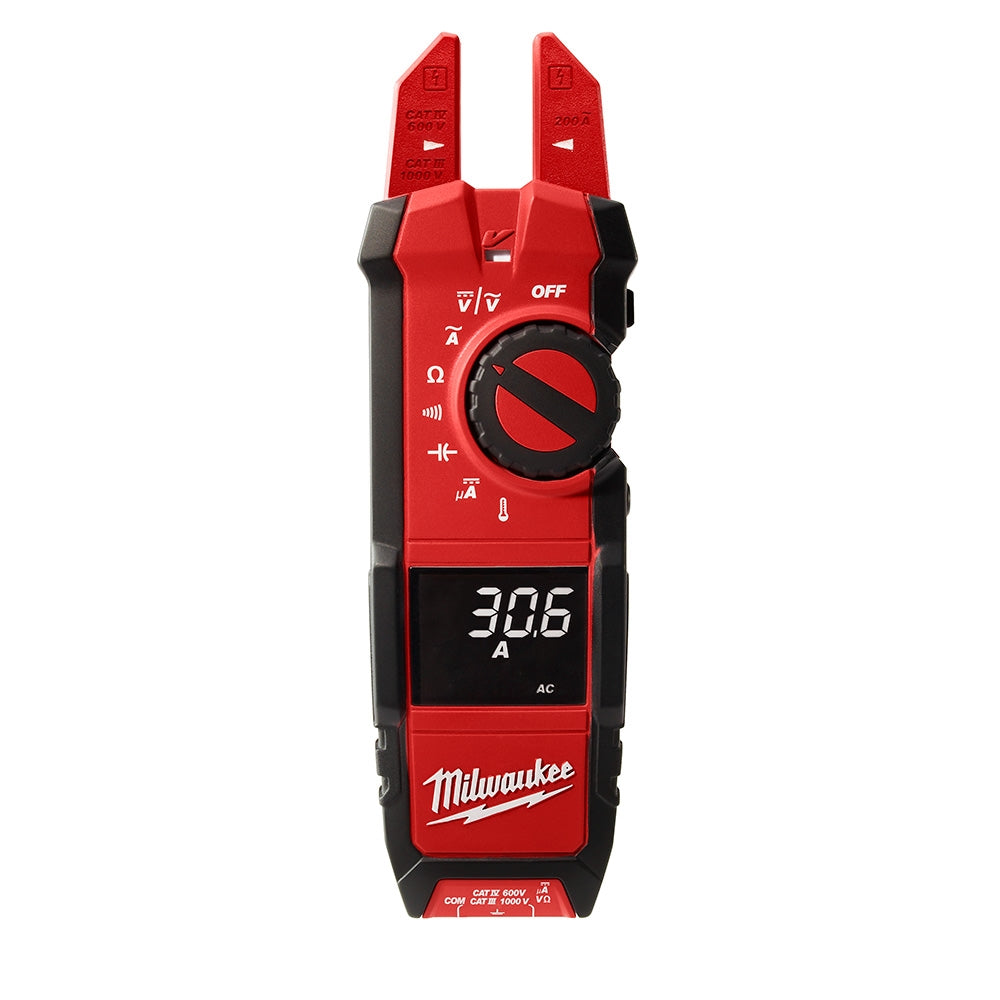

The Milwaukee fork meter for HVAC/R is a heavy duty True-RMS electrical tester for professional residential, commercial and industrial applications. The 2206-20 is five tools in one providing current measurement, temperature measurement, voltage measurement, voltage detection and task lighting. In addition, the new tool provides a wide 0.63 in. fork opening, high 200 amp current range and a high contrast white-on-black display.

• Measures up to 200 amps, Wide 0.63� jaw opening
• True-RMS for accurate measurement in all applications
• Thermocouple (dual banana) input for contact temperature measurement
• High Contrast, White on Black Display with Backlight for easy reading

• Tool Warranty: 5 Years
• Battery Type: Alkaline (AA)
• Display Type: Digital
• Switch Type: Dial Switch
• Material Composition: Plastic
• Length: 7.85 in
• Weight: 1.26 lb
• Height: 3.1 in
• Width: 11.3 in
• TRMS: Yes
• Safety Rating: CAT IV 600V / CAT III 1000V
• Current AC: 200A
• Microamps DC: 1,000μA
• Voltage AC/DC: 1000V
• Resistance: 40MΩ
• Continuity: Audible
• Capacitance: 1,000μF
• Contact Temperature: -40° F to 752° F (-40° C to 400° C)
• Display Backlight: Yes
• Non Contact Voltage: Yes
• LED Work Light: Yes
• Rugged Overmolding: Yes
• Fork Opening: .63"

(1) Milwaukee 2206-20 FORK METER HVAC/R
