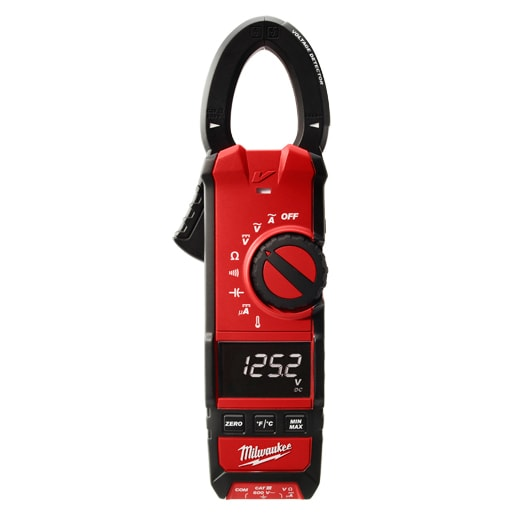

The Milwaukee clamp meter for HVAC/R is a heavy duty True-RMS electrical current tester for professional residential, commercial, and industrial applications. The perfect tool for the professional HVAC/R technician, the 2236-20 clamp meter provides a wide 1.3 in. jaw opening to easily handle large conductors, a thin jaw profile for access to tight spaces and a high contrast white-on-black display for clearer readings. Additionally, the Milwaukee clamp meter for HVAC/R was designed with embedded non-contact voltage detection and an LED work light to increase end user productivity.

• Tool Warranty: 5 Years
• Battery Type: Alkaline (AA)
• Display Type: Digital
• Switch Type: Dial Switch
• Material Composition: Plastic
• Length: 7.55 in
• Weight: 1.51 lb
• Height: 2.15 in
• Width: 14.75 in
• TRMS: Yes
• Jaw Size: 1.3"
• Safety Rating: CAT III 600V
• Current AC: 600A
• Microamps DC: 600μA
• Voltage AC/DC: 600V
• Resistance: 6 kΩ
• Continuity: Yes
• Capacitance: Yes
• Contact Temperature: -40° F to 752° F (-40° C to 400° C)
• Hold: Yes
• Display Backlight: Yes
• Non Contact Voltage: Yes
• LED Work Light: Yes
• Rugged Overmolding: Yes
• Temp Measurement: Yes
• Dual Banana Thermocouple Input: Yes
• Indication: Visual (for NCVD)

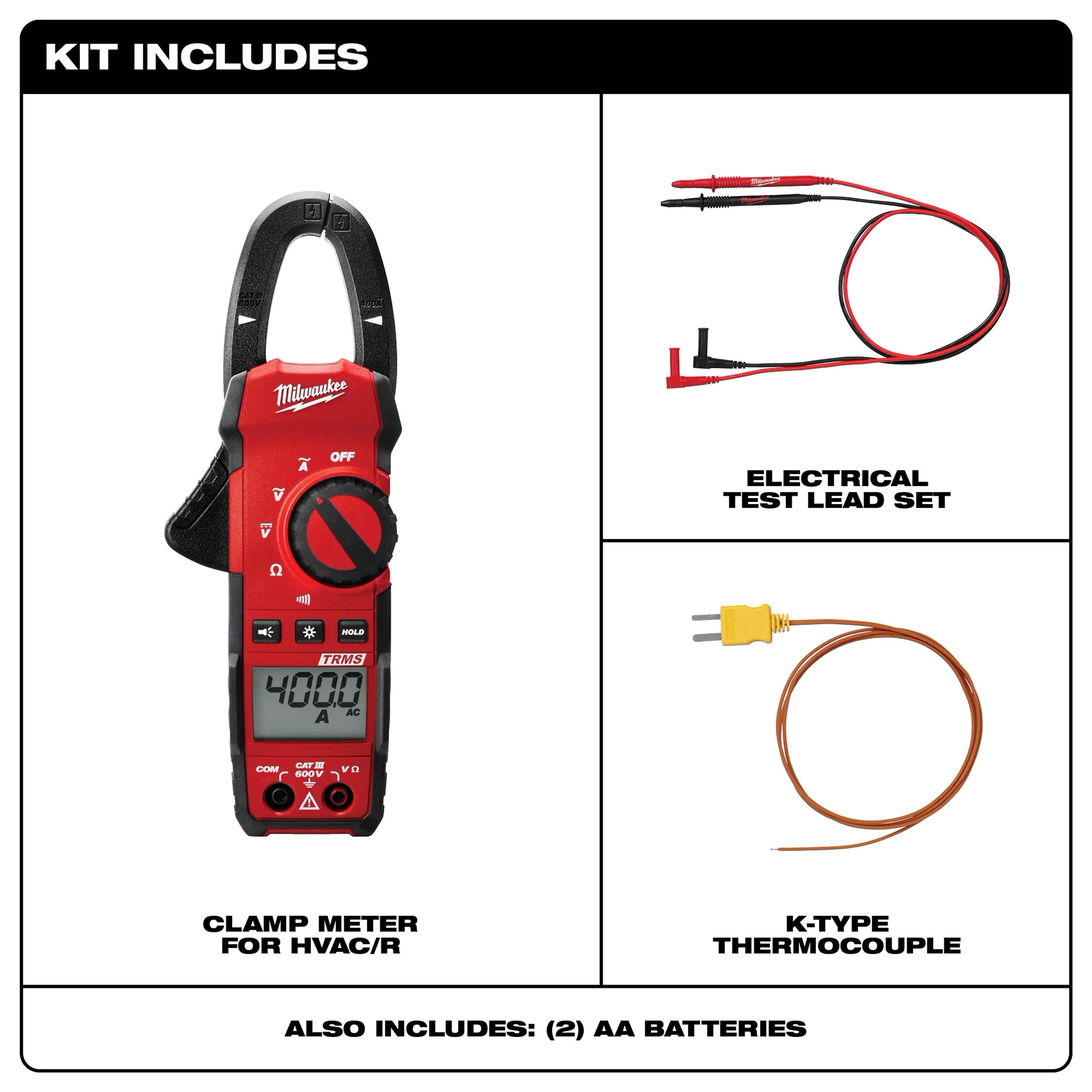

(1) Milwaukee 2236-20 CLAMP METER HVAC/R
