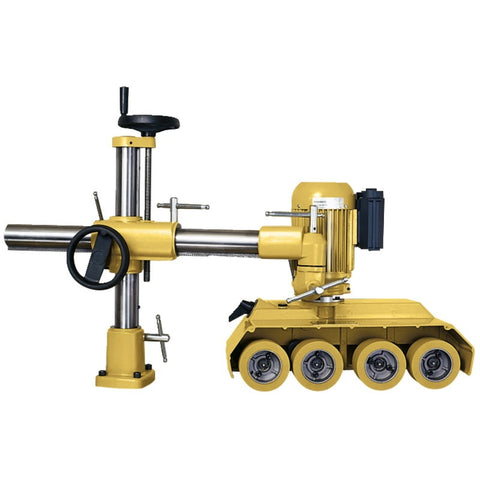

These rugged, heavy-duty stock feeders feature continuous-duty motors that transfer power from the gear box to the feed roller through the roller chain and sprockets, providing superior positive feeding for all types of materials. The fully adjustable support columns feature moveable universal joints and heavy locking mechanisms that lock the feeder in horizontal, vertical, or angle feed positions. Solid cast iron construction of bodies, bases and universal joints provide stability with vibration-free feeding. The smart roller system provides money-saving wheel changes by allowing the replacement of the tire only, not the complete assembly as on other units

• Roller chain and sprockets provide positive feeding for a variety of work
• Support column is fully adjustable for horizontal, vertical or angled feeder position
• Feeder body, column base and joints are cast iron for heavy duty operation
• Rollers can be changed out easily and quickly

Number of Speeds	4 Speeds
Column Diameter (In.)	2-7/25
Motor Voltage (V.)	230
Maximum Height of Rollers Parallel to Tabletop (In.)	8.45
Movement - Vertical (In.)	9.83
Motor Power (HP)	1
Distance Between Rollers - Center to Center (In.)	5.23 - 5.93 - 5.00
Movement - Horizontal (In.)	18.07
Rotation	Forward/Reverse
Recommended Circuit Size (Amps.)
Feed Rate (FPM)	Variable
Range of Speeds	13, 26, 33, 66
Motor Phase	3
Number of Rollers
Swing (Deg.)	360
Wiring Remarks
