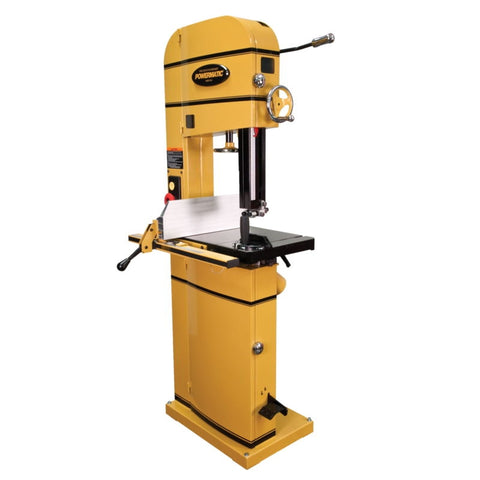

The PM1500 packs many of the features traditionally only found on larger bandsaws, and brings them to a new, category-redefining, 15?? size. As with every product Powermatic builds, the PM1500 pushes the limits of design, innovation, and durability. It truly is The Gold Standard.

• 14 1/2? of throat and 14? of resaw provide more capacity than a traditional 14? bandsaw
• Sturdy cast iron table and trunnion assembly offers maximum rigidity for heavy work pieces
• Exclusive Powermatic T-Square style Accu-Fence maximizes accuracy and safety
• The Accu-Fence has complete adjustability for aligning to blade and squaring to table
• Positive locking cam with pressure adjustment
• Oversized side plate can be used in the horizontal or vertical position
• Solid steel resaw pin for optimum ridgidity
• Blade tension release with electrical interlock prevents the bandsaw from starting when the blade is de-tensioned or released
• Heavy duty upper wheel support and tracking mechanism for smooth operation
• Solid cast iron upper and lower wheels create the momentum needed for heavy resaw

Blade Width (In.)	1/8 - 1
Blade Length (In.)	153
Motor Power (HP)	3
Motor Current (Amps)	12
Dust Port Outside Diameter (In.)	4
Minimum Saw Blade Width (In.)	1/8
Table Size (L x W) (In.)	21-1/2 x 16
Table Height from Floor (In.)	40
Maximum Saw Blade Width (In.)	1
Stand Type
Recommended Circuit Size (Amps.)
Wiring Remarks
Motor Phase	1
Band Saw Size/Wheel Diameter (In.)
Blade Speed (SFPM)	3100
Cutting Capacity Height (In.)	14
Table T-Slot (In.)
Table Tilt (Deg.)	10 Left, 45 Right
Table Size with Extension (L x W)
Cutting Capacity Width (In.)	14-1/2
Motor Voltage (V.)	230
Prewired Voltage (V.)	230
Dust Collection Minimum CFM Required (CFM)	600
Miter Gauge Positive Stops	45, 90
