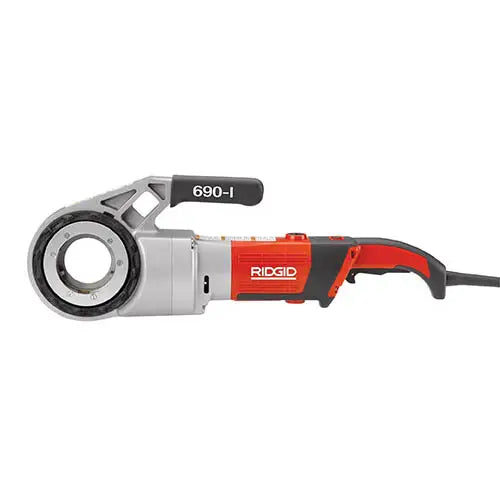

The RIDGID 690-I-NPT-KIT (44923) Hand-Held Power Drive for Pipe Threading, with 1/2" to 2" NPT Die Heads, 1020 W, 115V/12A, is a double insulated drive that provides power for threading pipe and conduit. It is designed to use RIDGID 11-R Drop Head Die Heads (1/8 in. to 2 in. pipe). Forward and Reverse rotation can be selected with a slide switch, while ON/OFF is controlled by a two-step momentary contact switch.

The 690-I Power Drive uses a die head retaining system: a quick turn will unlock the 1 1/2" and 2" die heads, while a simple twist will release the die head adapter.

The 690-I Power Drive is lightweight and portable for maintenance, repair and service plumbers. It is built with screw-in brush covers to improve serviceability. The power drive can also withstand demanding jobsite conditions, since it is built with a durable die cast gear housing and fiberglass reinforced plastic body. The dual "V" jaw support arm firmly prevents slipping, while the over molded handle and contoured grip provide optimal control.

• Provides power for threading 1/8" to 2" pipe with 11-R die heads
• Equipped with die head retaining system: simple twist and release for large die heads (1 1/2" and 2") and die head adapter
• 1020W 115V universal motor rotates machine at 36 RPM
• Made with durable die cast gear housing and fiberglass reinforced plastic body
• Built to withstand demanding job site conditions and provide long-lasting performance
• Lightweight and portable design is ideal for maintenance, repair and service plumbers
• Equipped with slide switch for selecting Forward and Reverse rotation
• Over molded handle and contoured grip provide optimal control
• Dual "V" jaw support arm firmly prevents slipping
• Screw-in brush covers improve serviceability
• Supplied with 1/2" to 2" NPT die heads

• Pipe Threading Capacity: 1/8 in. to 2 in.
• Compatible Die Head: 11-R
• Operating Speed: 36 RPM
• Motor Type: Universal, Single Phase
• Watts: 1020 W
• Rating: 115 V, 60 Hz, 12 A
• Controls: Forward/reverse slide switch; On/off two-step momentary contact
• Gear Head: Die cast aluminum permanently greased
• Body & Handle: Durable heavy-duty fiberglass reinforced plastic
• Weight (Power Drive only): 21.1 lbs. ( 9.59 kg)
• Size (L x W x H): 24.1 in. x 4.75 in. x 8 in.

• 1 - 690-I Power Drive

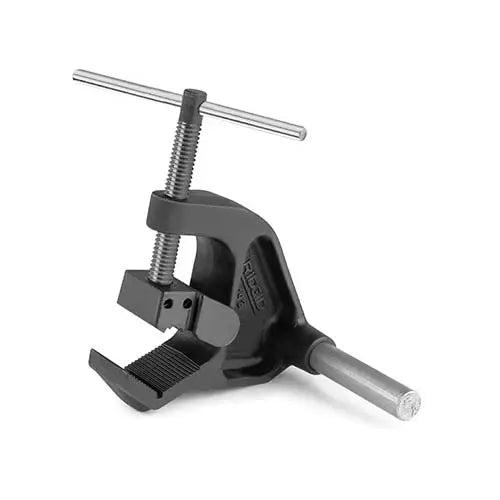

• 1 - 692 Support Arm (45928)
• 1 - Carrying Case (46673)
• 1 - 11-R Ratchet Ring (39187)
• 1 - 1/2" NPT 11-R Die Head (37040)
• 1 - 3/4" NPT 11-R Die Head (37045)
• 1 - 1" NPT 11-R Die Head (37050)
• 1 - 1 1/4" NPT 11-R Die Head (37055)
• 1 - 1 1/2" NPT 11-R Die Head (20923)
• 1 - 2" NPT 11-R Die Head (20943)
