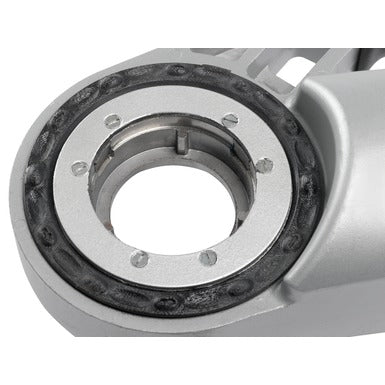

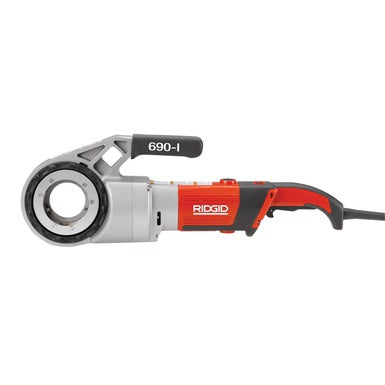

The RIDGID® 690-I Hand-Held Power Drive Pipe Threading Machine die head retaining system has a simple twist and release for the 1 1/2", 2" Die Heads and Die Head Adapter. Lightweight and portable for maintenance, repair and service plumbers. Over-molded handle and contoured grip provide optimal control. Screw-in brush covers improve serviceability. Durable die cast gear housing and fiberglass reinforced plastic body to withstand demanding job site conditions. Dual "V" Jaw Support Arm firmly prevents slipping.



• RIDGID die head retaining system is a simple twist and release for the 1 1/2", 2" Die Heads and Die Head Adapter.
• Lightweight and portable for maintenance, repair and service plumbers.
• Over molded handle and contoured grip provide optimal control.
• Screw-in brush covers improve serviceability.
• Durable die cast gear housing and fiberglass reinforced plastic body to withstand demanding job site conditions.
• Dual "V" Jaw Support Arm firmly prevents slipping.

Capacity	1/8" - 2" (3mm - 50mm) 11 R Die Heads.
Motor	1270 Watt, Single Phase, Universal Motor
Weight	21.1 lbs. ( 9.59 kg) Power Drive only.
Size	24.1 in. (613 mm) L x 4.75 in. (121 mm) W x 8 in. (203mm) L.
Controls	Forward/reverse slide switch, on/off two-step momentary contact.
Gear Head:	Die cast aluminum permanently greased.
Body & Handle	Durable heavy-duty fiberglass reinforced plastic.

(1) RIDGID 44928 Power Drive Only W/ Case and Support Arm
