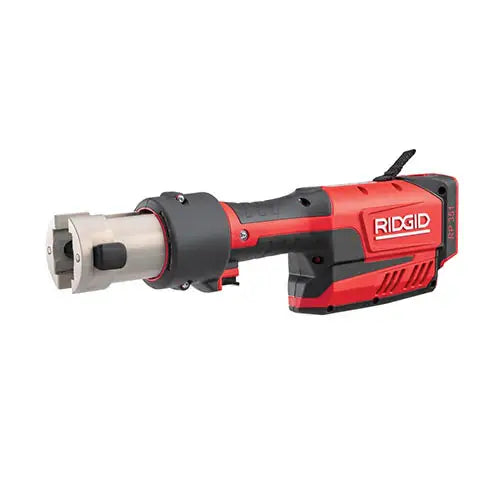

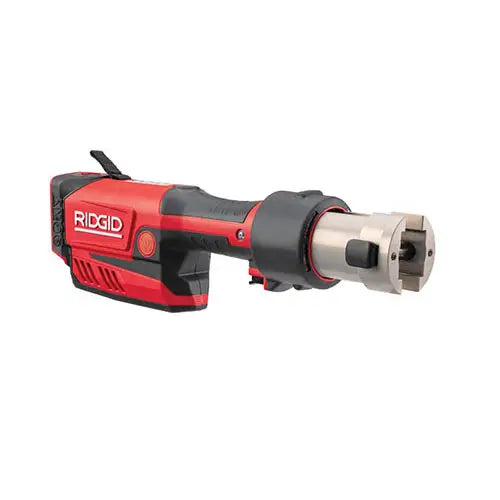

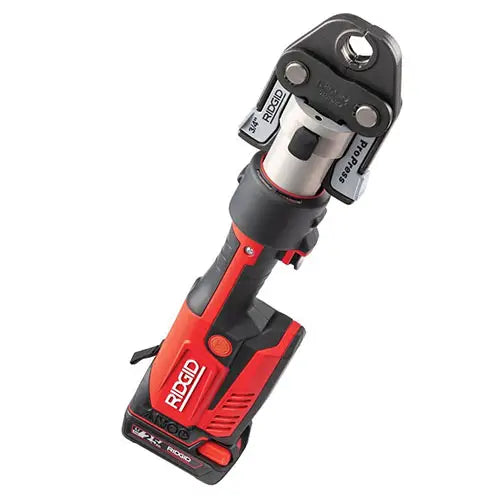

The RIDGIDRP 351 MEGAPRESS KIT 1/2-1 (70818) Battery-Powered Inline Press Tool Kit features a brushless motor that is capable of over 100,000 press cycles and requires no scheduled maintenance. Get access to hard-to-reach locations with endless 360° swivel. With the most advanced LED lighting and color-coded status indicators, the RP 351 has been upgraded from top to bottom. It's one of the few press tools in the industry compatible with all RIDGID Standard Series press jaws, rings, actuators and attachments (only MegaPress jaws included). When equipped with appropriate attachments, the RP 351 Press Tool is designed to mechanically press fittings onto tubing to create a water-tight and permanent seal, such as for plumbing, heating, air conditioning, and refrigeration applications. Attachments are also available separately for other uses. When the run switch on the press tool is depressed, an internal electric motor powers a hydraulic pump that sends fluid into the cylinder of the tool, moving the ram forward and applying force to the attachment, pressing the fitting. The press cycle takes approximately 4 seconds. Once the cycle begins to deform a fitting, it will automatically continue until completion, even if the run switch is released. The RP 351 includes Bluetooth wireless technology to allow connection to smartphones and tablets. The tool consequently offers a second operating mode ("Control Mode") that can be turned on using the RIDGID Link App. Control Mode allows the fitting to be engaged prior to pressing to allow confirmation of proper alignment of the attachment, fitting and tube. The tool's status lights indicate tool status, battery status, maintenance required, improper temperature, and more. A work light turns ON when the run switch is depressed to illuminate the work area. The head can be rotated 360° for better access in tight spaces. Brushless motor capable of producing over 100,000 press cycles Durable and efficient operation requires no scheduled maintenance Endless 360° head swivel for easy access to hard-to-reach locations Ergonomic inline design ideal for work performed overhead and in tight spaces Supports multiple sizes and systems: 1/2 in. to 4 in. copper and stainless steel 1/2 in. to 4 in. carbon steel (requires optional Press Booster above 2 1/2 in.) 1/2 in. to 2 in. PEX Color-coded status indicators provide real-time tool diagnostics Bluetooth connectivity for wireless data transfer to iOS and Android smart devices Equipped with robust LED lighting for low-light applications 18V Lithium-ion battery powers over 300 presses per charge Compatible with all RIDGID Standard Series jaws, rings, actuators, and attachments Included MegaPress Jaws can press fittings onto steel pipe (schedules 5 through 40) from 1/2 in. to 1 in. (12 to 25 mm)

Capacity	1/2" to 4" for carbon steel*, 1/2" to 4" copper and stainless steel, 1/2" to 2" for PEX *Press Booster is needed for 2 1/2" to 4" carbon steel
Head Rotation	360° head swivel
Hydraulic Ram Output	7,200 lbs. (32kN)
Weight	7.0 lbs (3.2kg)
Length	15.6" (396 mm)
Height	4.6" (117 mm)
Width	3.0" (76 mm)
Crimp Cycle Time	Standard - ~4 seconds
Lighting	LED-Light
Service Cycle Interval	No scheduled maintenance

• 1 - RP 351 Press Tool (67223)
• 1 - 1/2" Jaw for MegaPress (37958)
• 1 - 3/4" Jaw for MegaPress (37963)
• 1 - 1" Jaw for MegaPress (37968)
• 1 - 18V 2.5 Ah Li-ion Battery (56513)
• 1 - 120V Battery Charger (64383)
• 1 - Carrying Case (67338)
