SawStop PCS175 1.75HP Professional Cabinet Saw
$3,358.00
Product Code: SAS-PCS175
Usually Ships in 7-10 Days
Fence Assembly
Motor Options
$3,358.00
SawStop Professional Cabinet Saw
The SawStop 110V, 1.75HP 10" Professional Cabinet Saw is engineered to fit the unique demands of the avid hobbyist in a home setting. Delivering the peerless fit and finish of the Professional Cabinet Saw, this saws 110V power and optimized footprint make it ideal for the many challenges of a home shop. With SawStops legendary safety system, uncompromising quality and industry-leading dust collection, the 110V Professional Cabinet Saw is engineered to be the cornerstone of a high-end home shop.
Safety System
Automatically stops and retracts the blade on contact with skin
Tool-Free Quick-Change Blade Guard Mount
Make fast and easy transitions between blade guard and riving knife with no tools required
Quick-Release, Zero-Clearance Insert
Features a quick-release mechanism for tool-free access to the saw cavity
Award-Winning Dust Collection
Patent pending under table advanced airflow control system captures dust at the blade and directs it out of the saw through the dust collection port
Fence and Rails
The standard 30 Premium Fence & Rail is a high-quality T-Style design, featuring smooth operation and firm lockdown. The 36" or 52" T-Glide professional fence/rail systems are also available
Fit and Finish
Attention to detail, premium craftsmanship and rigorous engineering combine to create a saw you'll love to use
Precision Alignment System
Adjust the blade and table alignment with precision not found on other saws
Blade Guard
Micro Blade Guard's multiple shield plates protect from flying debris
SawStop Total Safety
A safer, better saw, in so many ways.
The SawStop Professional Cabinet Saw has several features to help operators stay safe.
- SawStop safety system prevents serious injury with always-on protection.
- 110V, 1.75HP model is engineered for the home shop, as it delivers the convenience of plugging in anywhere and a smaller shop footprint combined with the Professional Cabinet Saws safety, quality and dependability.
- 220V, 3.0HP model is engineered for the avid hobbyist and discerning professional

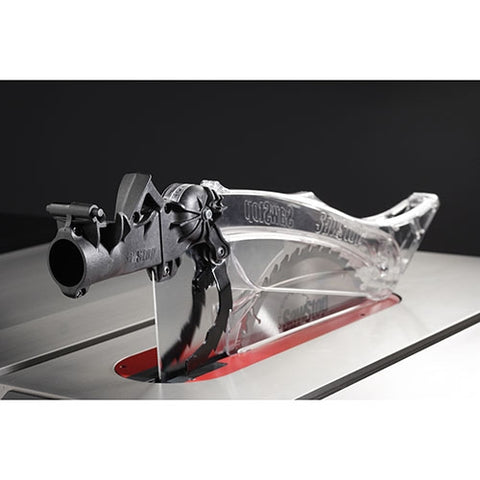

- Dust Collection Blade Guard (included with the 3.0HP model, optional for the 1.75HP model). This innovative blade guard collects above-table dust and features independent lateral sides to minimize exposure to the blade. It retains a low profile to allow for cuts as narrow as 3/4 of an inch.
- Riving knife minimizes kickback and provides protection during non-through cuts.
- We double-check the saw every time you turn it on. A diagnostic self-check runs when you start the saw to ensure all systems are ready to detect an accident. If any problem is detected, the system will not allow the saw to start.
- Sometimes you have your hands full and really need to stop the blade. Our large start/stop paddle with hands-free shutoff can be pushed with your knee allowing you to safely stop the blade even hands free.
- Never worry again about someone using your saw when youre not around. The main power switch with lockout key prevents unauthorized users from operating the saw.
- When the power goes out, the saw stays off. The safety system wont allow the motor to restart automatically when the power comes back on.
- Left-tilting blade helps prevent wood from binding against the fence.
SawStop Innovative Dust Collection
What do you do when you eliminated the #1 safety issue on table saws? You tackle #2. The Professional Cabinet Saw captures 99% of dust produced with an innovative above- and below-the table system.*
- Aerodynamic engineering converts turbulent airflow created by the blade into a directed stream, collecting 99% of the dust generated during cutting.
- Blade guard with integrated dust collection captures particles and channels them through a 1.5" port.
- *The 120V, 1.75HP model features the same advanced below-table aerodynamics. To achieve 99% dust collection, this model requires an optional dust collection blade guard.
- A sophisticated under-table dust shroud draws sawdust away from the blade and funnels it through a 4" tube to a port at the rear of the cabinet.
- Effectively redirects dust away from the saw even when not attached to a dust collection system.
SawStop Convenience
In addition to its unsurpassed safety, the SawStop Professional Cabinet Saw is, quite simply, a pleasure to use. Boasting a host of features designed to help you work better " and enjoy yourself while youre at it.
- Quick-release, zero-clearance insert provides support throughout the cut reducing tear out and chip out. The tool-free quick release makes removing the insert for blade or guard changes a breeze. A positive latching mechanism lets you know the insert is securely in place.

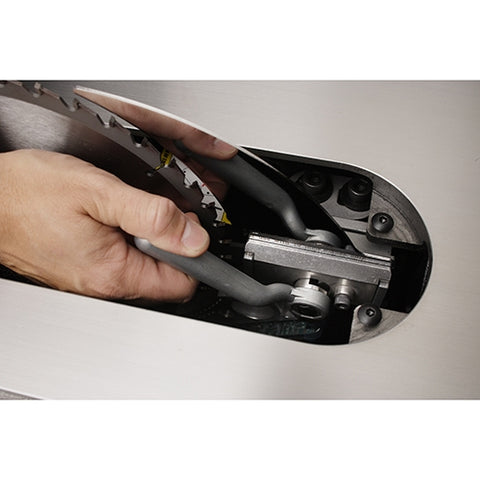

- Inconvenience is the enemy of safety. We made it easy to change between blade guard and riving knife with our tool-free blade guard quick change mechanism. Operators can remove the insert and make blade changes quickly with no tools required, minimizing disruptions to workflow.
- Optional integrated mobile base is engaged with a simple foot press. The base lifts the entire saw and up to a 52 extension table while its engaged. When the mobile base isnt activated, the saw rests firmly on its own cabinet improving stability.
- An easy-to-access tool caddy holds the blade guard, riving knife and miter gauge.
- 27" deep extension table is compatible with popular after-market accessories from many brands.
- Ample and easy access inside the cabinet. Three doors in the cabinet make it easy to get to all adjustment points on both sides of the trunnion.
- Measure once, cut once. Getting the right measurement is easy with magnified indicator lenses and smooth sliding surfaces on the T-Glide Professional Series Fence and Premium Fence systems. The T-Glide is included with the 3.0HP model, and an available option with the 1.75HP model, while the Premium model is included with the 1.75HP model.
- Cut anything " even conductive material. The safety bypass switch allows users to cut conductive material without activating the brake. Since the bypass has to be turned on every time the blade is started, you dont have to remember to turn off the bypass system when youre done.
SawStop Fit & Finish
Many of our customers tell us that they bought the saw for its safety features, but fell in love with its quality.
- Precise elevation changes made easy. The gas-assisted vertical elevation system is located close to the internal structures center of gravity, making fine-tuning smooth and easy.
- Rack and pinion elevation system. The elevation system operates on a vertical slide rather than on an arc providing you with repeatability and consistent alignment. Blade height is proportional to handle turns at all elevations.
- Precision ground cast iron table features beveled edges to prevent damage to sensitive stock.
- Keep your blade guard in alignment, even when connected to a dust collection hose. A unique air-transfer pivot joint mechanically isolates the blade guard from the dust collection tube.
- Mechanical adjustment points on the trunnion enable the operator to make micro adjustments, ensuring exact blade alignment at all bevel angles.
- Seven-inch cast iron adjustment wheels are chrome plated making fine adjustments to blade height and angle a snap.
SawStop Durability
The SawStop Professional Cabinet Saw is designed for high use in demanding environments.
- Hammers are for driving nails, not adjusting saws. Discrete adjustment points throughout allow you to make precise blade-to-table and trunnion-to-table alignments using a hex wrench rather than brute force.
- Engineered for the automotive industry, the long-lasting Poly-V ribbed belt can run continuously while delivering greater power transfer and reduced vibration to the blade for better cuts.
- The elevation and tilt mechanisms use self-cleaning teeth to keep debris free from key internal mechanisms.
- Powder-coated cabinet resists rust and corrosion ensuring stability and reliability for years to come.
- Massive 62mm main arbor bearing delivers long lasting performance. The largest bearing ever used in a 10" cabinet saw provides you with smoother performance and longer life.
- Extension table legs bolt to the rails rather than the table reducing the risk of damage to the table during movement.
- Overall saw dimensions: 44 w x 293/4 d x 34 h (table saw only)
- 69-1/8 w x 33 d x 34 h (w/ T-Glide Fence System & 36 rails)
- 85-1/4 w x 33 d x 34 h (w/ T-Glide Fence System & 52 rails)
- Cabinet footprint:19-3/8 w x 19-3/8 d
- Cast iron table: 20 w x 27 d, 44 w x 27 d (w/ extension wings)
- Extension wing: 12 w x 27 d
- Extension table (optional): 23-3/4 w x 27 d (36 rails), 40-1/8 w x 27 d (52 rails)
- Weights (approx.): 335 lbs (table saw with extension wings only)
- 426 lbs (w/ T-Glide Professional Series II Fence System,36 rails & table)
- 449 lbs (w/ T-Glide Professional Series II Fence System,52 rails & table)
- 35 lbs (cast iron extension wing)
- Shipping weight (approx.): 390 lbs (boxed table saw)
- Blade: 40-tooth, professional grade, 5/8 Arbor
- Blade diameter: 10"
- Blade tilt: Left
- Blade kerf: 0.118 (3 mm)
- Blade plate thickness: 0.078 (2 mm)
- Max. depth of cut, blade at 0-Degree: 3-1/8
- Max. depth of cut, blade at 45 Degrees: 21/4
- Max. rip, right of blade: 36 (w/ optional 36 rails) 52 (w/ optional 52 rails)
- Max. rip, left of blade: 12 (w/ T-Glide Professional Series II Fence System)
- Dado diameter: 8 (requires a separate brake cartridge and table insert)
- Dado max. width: 13/16
- Arbor diameter at blade: 5/8
- Main bearing size: 62 mm OD x 30 mm ID
- Second bearing size: 52 mm OD x 25 mm ID
- Table in front of blade (max. elevation): 10-1/4
- Table behind blade (max. elevation): 7-1/2
- Arbor runout: 0.001 maximum allowable runout
- Table flatness measured diagonally: 0.010 maximum gap
- Blade alignment with miter slot: 0.010 maximum displacement
- Deviation of miter gauge indexing stops from actual angle: 0.25o
- Alignment between spreader and blade:0.010 maximum difference
- Miter slots:T-shaped, 3/4 at top, 1 at bottom, 3/8 deep
- Cabinet dust collection port diameter: 4
- Blade guard dust collection port inner diameter: 1.25
- Blade guard dust collection port outer diameter: 1.5
- Riving knife / spreader thickness: 0.090 (2.3 mm)
- Blade guard: polycarbonate, extends only 1 /16 to right of blade
- Standard Insert: zero-clearance, phenolic core, melamine surfaces
- Belts: 2 V-ribbed belts" arbor belt is static dissipative
- Handwheels: 7 diameter, cast iron chrome plated
- Blade lateral movement: 0.006 Maximum over full elevation range
(1) Cast-Iron Table And Wings
(1) Riving Knife
(1) Blade Guard
(1) Tool Free Zero- Clearance Insert
(1) Standard 10†Brake Cartridge
(1) 40 Tooth Carbide Tip Blade
