Timberline 450-14 Timberline Classical Plunge
$49.32
Product Code: AMA-450-14

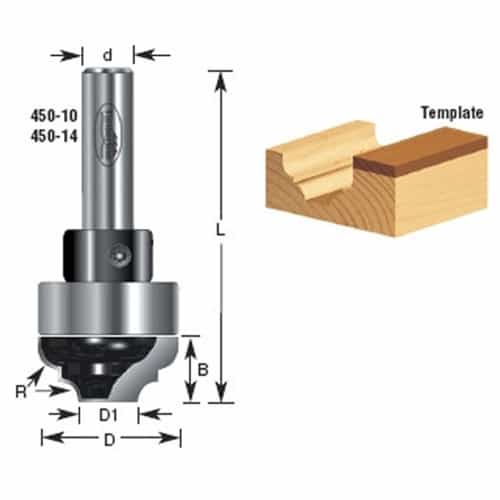

TIMBERLINE by Amana 450-14 TIMBERLINE CLASSICAL PLUNGE
2 Flute with Ball Bearing Guide
Rout decorative grooves on solid wood or MDF panels and surfaces with a handheld or CNC router. Form edges with a hand router euipped with an edge guide, or on a router table. Shank-mounted bearing allows cuts to be guided by a template mounted atop the workpiece. Can be used with a template.
| R | R1 | R2 | D | D1 | B | d | L | Tool No. |
| 13/64" | - | - | 1-3/8" | .522" | 9/16" | 1/2" | 2-5/8" | 450-10 |
| 13/64" - - 1-3/8" .522" 25/64" 1/2" 2-5/8" 450-14 | ||||||||

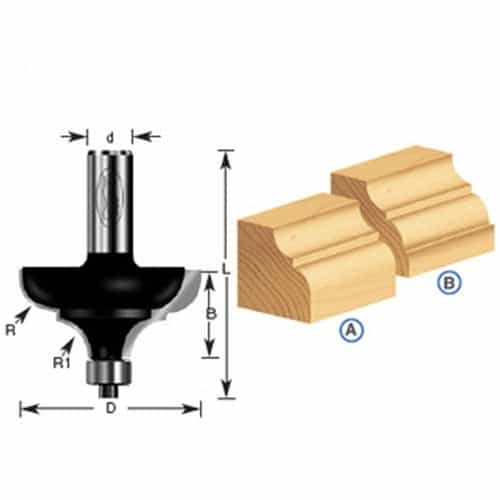

| - | 1/4" | 13/32" | 1-3/8" | - | 9/16" | 1/2" | 2-5/8" | 450-18 |
| -
1/4"
13/32"
1-3/8"
-
25/64"
1/2"
2-5/8"
450-16 1/2" Shank Carbide Tipped Professional Quality Replacement Bearing Part No. 47734 Replacement Collar Part No. 47740 Recently Viewed {"statementLink":"","footerHtml":"","hideMobile":false,"hideTrigger":false,"disableBgProcess":false,"language":"en","position":"left","leadColor":"#146ff8","triggerColor":"#146ff8","triggerRadius":"50%","triggerPositionX":"right","triggerPositionY":"bottom","triggerIcon":"people","triggerSize":"medium","triggerOffsetX":20,"triggerOffsetY":20,"mobile":{"triggerSize":"small","triggerPositionX":"right","triggerPositionY":"bottom","triggerOffsetX":10,"triggerOffsetY":10,"triggerRadius":"50%"}}
|
