Features

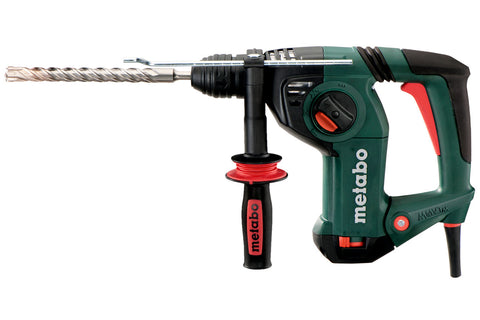

• Combination hammer with 3 functions: hammer drilling, drilling, and chiselling
• Metabo VibraTech (MVT): integrated damping system and side handle to reduce vibrations, protecting the user’s health
• Ergonomic housing shape for chiselling tasks without the side handle
• Vario (V)-Electronics for working at customised speeds to suit various application materials
• Metabo Longlife motor with dust protection for extended service life
• High-performance hammer action, precisely mounted in an aluminium alloy housing for durability and robustness
• Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the drill stop unexpectedly
• Cable-protecting ball joint ensures optimal freedom of motion while working
• Includes metaBOX: the intelligent transport and storage solution

• Max. single blow energy (EPTA): 3.1 J
• Maximum impact rate: 4470 bpm
• Rated input power: 800 W
• Drill-Ø concrete with hammer drills: 32 mm / 1 1/4"
• Drill-Ø masonry with core bits: 82 mm / 3 1/4"
• Drill-Ø steel: 13 mm / 1/2"
• Drill-Ø soft wood: 35 mm / 1 3/8"
• No-load speed: 0 - 1150 rpm
• Speed at rated load: 920 rpm
• Tool holder: SDS-plus
• Collar diameter: 50 mm / 1 31/32"
• Weight (without power cable): 3.4 kg / 7.5 lbs
• Cable length: 4 m / 13 ft

Vibration

• Hammer drilling concrete: 12.9 m/s²
• Uncertainty of measurement K: 1.5 m/s²
• Chiseling: 10.9 m/s²
• Uncertainty of measurement K: 1.5 m/s²

Noise Emission

• Sound pressure level: 91 dB(A)
• Sound power level (LwA): 102 dB(A)
• Uncertainty of measurement K: 3 dB(A)

• Hammer chuck for tools with SDS-plus shank end
• Metabo VibraTech (MVT) side handle
• Drilling depth guide
• metaBOX 165 L
