Freud Tools 1-1/4" (Dia.) Drawer Lock Bit
$49.97
Freud 99-239 Drawer Lock Router Bit with 1-1/4" Overall Diameter
Aplication: Forming a strong joint between the sides and front of a drawer
- Drawer fronts are formed horizontally, flat on the table surface.
- Drawer sides are formed vertically against the fence of the table.
- Cuts all composition materials, plywoods, hardwoods, and softwoods.
- Use on table-mounted portable routers.

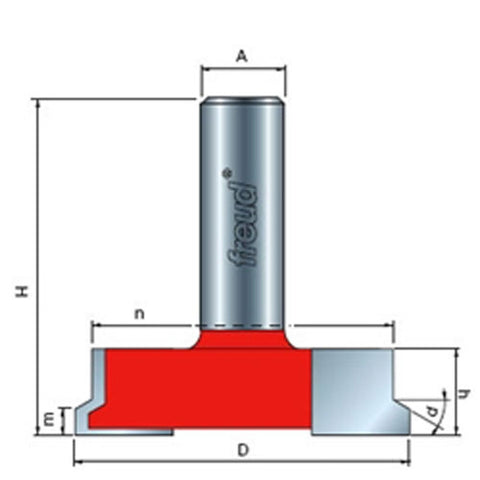

Overall Diameter (D): 1-1/4"
Bearing Diameter (B):
Bearing Type:
Carbide Height (h): 1/2"
Cut Depth(c):
Minor Height(m): 13/64"
Small Diameter(n) :1-1/64"
Radius ( R ):
Large Radius (R1):
Small Radius(R2):
Angle (d):
Shank Diameter (A) :1/2"
Overall Length(H) :1-3/4"
