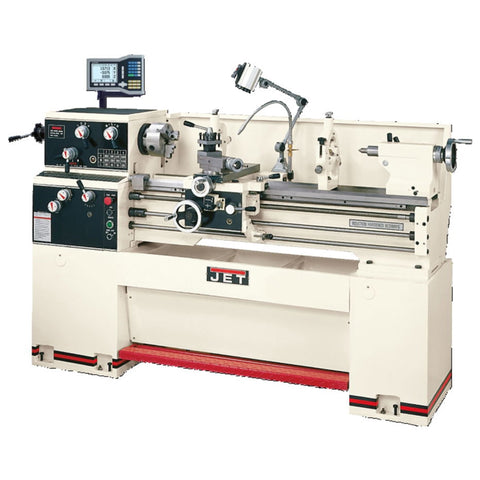

JET 321160 GH-1340W-1 Lathe w/ Collet Closer
$10,999.00
Jet 321160 GH-1340W-1 Lathe with Collet Closer and Taper Attachment
- 1-1/2" bore spindle supported by precision tapered bearings
- Hardened and ground gears are featured in the headstock and gearbox
- D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
- Headstock is constantly oiled during operation
- Plined, not keyed, shafts are utilized in the headstock
- Gearbox provides larger threading and feed capabilities with no gear changes
- V-way bed design is induction hardened and ground
- Gap bed section provided for larger diameter work
- Independent leadscrew and feed rod
- Spindle actuation control is apron mounted
- Inch-metric dials are standard
- Compound and cross slide have backlash elimination
- Adjustable gibs are incorporated in the carriage and slideways
- Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
- Tolerance test certificate included
- Heavy-duty stand
- 6" 3-jaw direct mount scroll chuck with top reversing jaws
- 8" 4-jaw independent chuck
- 12" face plate
- Four-way tool post
- Steady and follow rest
- Micro-carriage bed stop
- Front removable chip tray
- Spindle jog button
- Foot brake
- Coolant system with splash guard
- Metric Change Gears
- Halogen Work Lamp
| Size | 13 x 40 |
| Accessory 1 | Taper Attachment |
| Accessory 2 | Collet Closer |
| Swing Over Bed (In.) | 13 |
| Swing Over Cross Slide (In.) | 7-1/2 |
| Swing Through Gap (In.) | 19 |
| Length of Gap (In.) | 9-3/8 |
| Distance Between Centers (In.) | 40 |
| Spindle Bore (In.) | 1-1/2 |
| Spindle Mount | D1-4 |
| Spindle Taper with Sleeve | MT-5 (MT-3) |
| Number of Spindle Speeds | 12 |
| Range of Spindle Speeds (RPM) | 40 - 1,800 |
| Number of Longitudinal and Cross Feed Rates | 40 |
| Range of Longitudinal Feeds (IPR) | .0012 - .0294 |
| Range of Cross Feeds (IPR) | .0003 - .0103 |
| Number of Inch Threads | 40 |
| Range of Inch Threads (TPI) | 4 - 112 |
| Number of Metric Threads | 22 |
| Range of Metric Threads | .45 - 7.5 |
| Max Tool Size (In.) | 5/8 x 5/8 |
| Compound Slide Travel (In.) | 3-1/2 |
| Cross Slide Travel (In.) | 6-3/8 |
| Carriage Travel (In.) | 37-1/2 |
| Tailstock Spindle Travel (In.) | 4-3/4 |
| Taper in Tailstock Spindle | MT-3 |
| Follow Rest Capacity (In.) | 2-3/4 |
| Steady Rest Capacity (In.) | 3-3/4 |
| Width of Bed (In.) | 10-1/2 |
| Motor (HP) | 3 HP, 230V, 1Ph |
| Prewired (V.) | 230 |
| Weight (Lbs.) | 2,081 |
| Overall Dimensions (L x W x H) (In.) | 78 x 38 x 59 |
| Drive | Geared Head |
| Style (Type) | Engine - Geared Head |
