JET 414466 HBS-814GH, 8 in. x 14 in. Horizontal Head Bandsaw
$3,959.00
Jet 414466 HBS-814GH, 8 Inch x 14 Inch Horizontal Geared Head Bandsaw 115/230V 1Ph
- Hardened and ground drive shaft and worm gears transmit maximum torque to blade wheels
- Heavy-duty geared head transmission for quick speed changes
- Fully adjustable hydraulic downfeed system

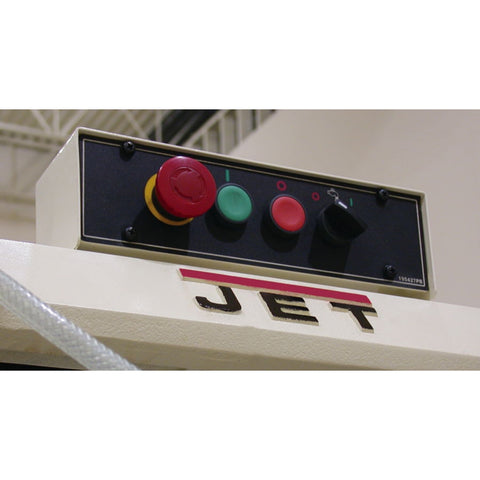

- Easily accessible saw control panel
- Quick-positioning vise with fully adjustable jaws, swivels to 45 deg
- Built-in, self propelled blade brush extends blade life
- Wheels permit easy storage and movement

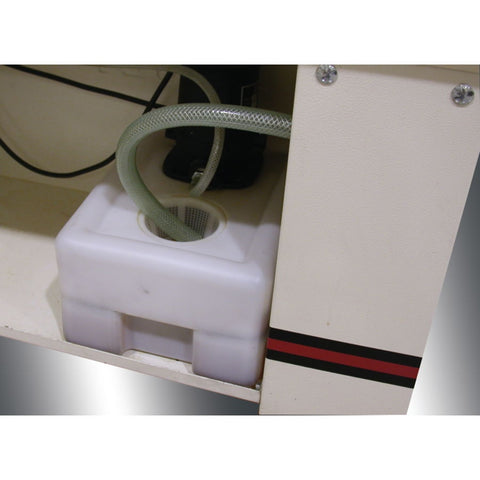

- Coolant system
- Adjustable material stop
- 3/4" Bi-Metal blade
| Cutting Capacity (W x D) (In.) | 8 x 14 |
| Round at 90 Degrees (In.) | 8 |
| Round at 45 Degrees (In.) | 6-1/2 |
| Rectangle at 90 Degrees (In.) | 14 x 8 and 2 x 14 |
| Rectangle at 45 Degrees (In.) | 6-1/2 x 6 and 2 x 7 |
| Vise Swivels (Deg.) | 45 deg |
| Blade Speeds (SFPM) | 135, 197, 256 |
| Blade Wheel Diameter (In.) | 12 |
| Blade Length (In.) | 97 |
| Blade Size (In.) | 3/4 x .035 x 97 |
| Bed Height (In.) | 26 |
| Motor (HP) | 1 HP, 115/230V, 1Ph |
| Weight (Lbs.) | 363 |
| Overall Dimensions (L x W x H) (In.) | 51-1/2 x 18-1/8 x 44 |
