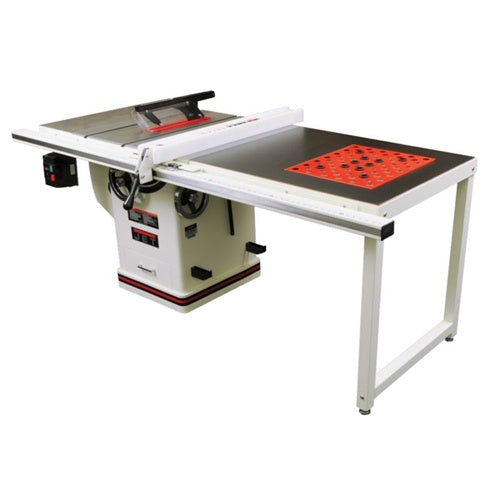

JET 708679Pk Dlx Xacta Saw 5Hp, 50 in. Rip w/ Downdraft Table and Leg Set
$3,399.99
Product Code: JET-708679PK
JET 708679PK DLX XACTA SAW 5HP, 50 in. Rip w/ Downdraft Table and Leg Set
- EXCLUSIVE Commercial XACTA Fence II with T-square design
- Quick release riving knife greatly reduces binding/kickback risk
- JET downdraft table with exclusive design (patent pending), draws harmful dust particles away from the user without obstructing the users movement or productivity
- Push button arbor lock for rapid blade change
- Shrouded Blade increases dust collection efficiency
- Standard 11" left and right cast iron extension wings provides the largest table surface in its class
- Poly-V drive belt system delivers quiet, efficient operation
- Rail-mounted magnetic switch is easy to reach and provides overload protection
- Enclosed cabinet with built-in sealed storage drawer
- Hinged motor cover on cabinet gives quick access to the motor and belts
- Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters
- Heavy-duty chrome plated handwheels contribute to smooth trunnion/arbor movement
- Left tilt, wide stance heavy-duty trunnion for stability and smooth blade positioning
| Style (Type) | Cabinet |
| Blade Diameter (In.) | 10 |
| Arbor Diameter (In.) | 5/8 |
| Arbor Speed (RPM) | 4300 |
| Maximum Depth of Cut (In.) | 3 |
| Maximum Depth of Cut at 45 Degrees (In.) | 2-1/8 |
| Maximum Rip Left of Blade (In.) | 13 |
| Maximum Rip Right of Blade (In.) | 50 |
| Table in Front of Saw Blade at Maximum Depth of Cut (In.) | 10 |
| Maximum Diameter of Dado (In.) | 8 |
| Maximum Width of Dado (In.) | 13/16 |
| Table Type | Cast Iron |
| Table Size (L x W) (In.) | 29 x 20 |
| Table Size with Extension (L x W) (In.) | 29 x 42 |
| Miter Gauge Type | Deluxe |
| Dust Collection Minimum CFM Required (CFM) | 350 |
| Dust Port Outside Diameter (In.) | 4 |
| Motor Power (HP) | 5 |
| Motor Phase (PH) | 1 |
| Motor Voltage (V.) | 230 |
| Prewired Voltage (V.) | 230 |
| Motor Amps | 18 |
