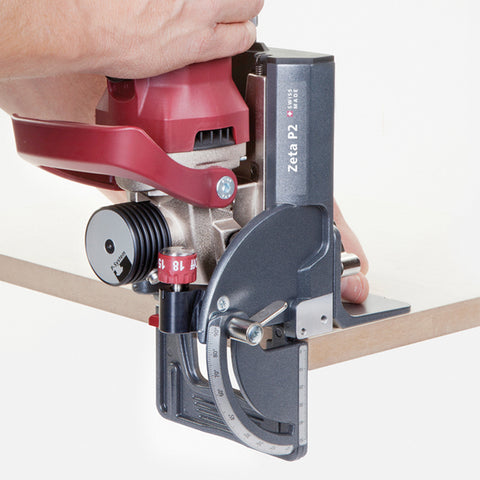

The Zeta P2 is the profile biscuit joiner for the P-System may be used to join components in solid wood, plywood, MDF, particleboard, plastics, solid surface, and more.The integrated vertical mechanical drive on the cutting spindle of the Zeta P2 is the centerpiece of this profile biscuit joiner. During the cutting process, the vertical mechanical drive automatically performs a vertical movement to create the profile groove. All P-System fittings are then manually inserted into this groove, ensuring a fast form-locking anchorage.
The Zeta P2 can cut P-System grooves for connectors with varying installation depths simply by turning the P-System depth adjuster, thus removing the need to change cutters.

• Trademark P-System Vertical Mechanical Drive. The vertical mechanical drive consists of highly precise rotary parts supplied by Lamello. It creates an eddy current, driving the stroke movement.
• P-System Anchorage
• Tool-free anchoring of connectors, without adhesive or screws.

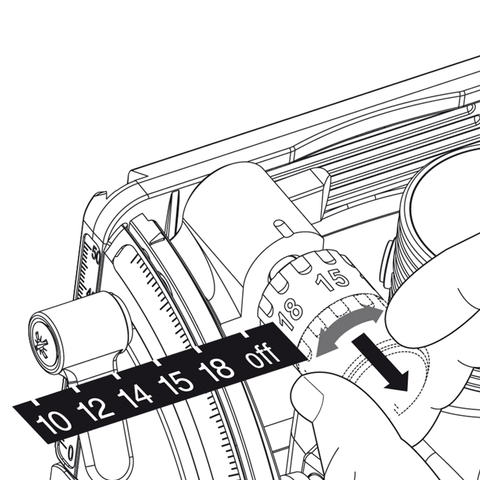

• P-System Depth Adjuster
• Extremely fast rotation to set different depths for the P-System joining elements: 10, 12, 14, 15 or 18.
• Use Zeta P2 for standard wooden biscuits by rotating the P-System depth adjuster to OFF to switch off the vertical mechanical drive. The 7 mm P-System cutter is replaced with the 4 mm groove cutter.
• Swivelling Front Stop with Fixed Pivot Point
• Join reliably with the cutter which is in the exact center between to two application surfaces
• Multifunctional Stop Square
• In addition to vertical stability resulting from the larger contact area, the stop square enables variable adjustment of the groove position, 0-50 mm.

Power: 800 W
Voltage: 120 V
Speed: 9,000

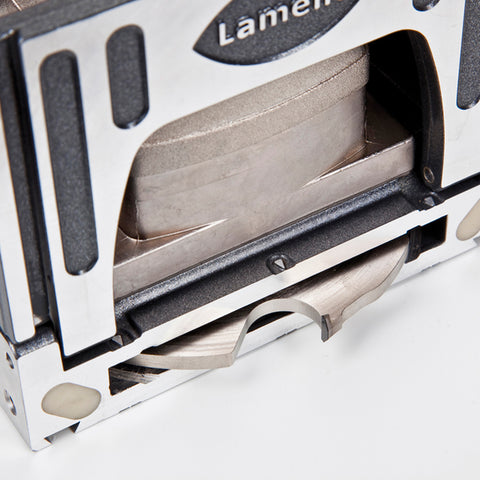

Cutter: Carbide-tipped profile groove cutter / Diamond-tipped profile groove cutter Ø 100 x 7 x 22 mm
Teeth: 3
Max. cutting depth: 20 mm
Weight: 8.2 lbs.

(1) Lamello 101403DS Zeta P2 with Diamond Cutter, Drill Jig & Bit
