The rugged skid frame of the HS Series makes it a popular option for mounting on a water trailer so you can take this cleaning powerhouse on the road. Blast away grease, oil and grime literally anywhere.

• Pump: External bypass system allows more water into the system to protect from heat build-up Factory preset unloader Forged brass manifold 80-mesh, high volume, stainless-steel screen inlet water strainer
• Engine: Electric start - battery included
• Frame: Heavy-duty powder coated steel 1-1/2-inch square tube frame
• Components: 2900-watt generator Heavy-duty dual cogged belt drive system No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel) 1/2-inch schedule 80-coil with stainless-steel wrap
• Miscellaneous: Temperature rise 150 degF/66 degC above ambient, maximum outlet temperature is 200 degF

• PSI - 3500
• GPM - 5.6
• Displacement/ Engine - 688cc Honda GX630 OHV
• Fuel Tank Capacity - 10.0 gallon
• Pump - General
• Burner Fuel Tank Cap. - 10.0 gallon
• BTU Per Hour - 471,800
• Burner Fuel Cons. - 3.37 gph

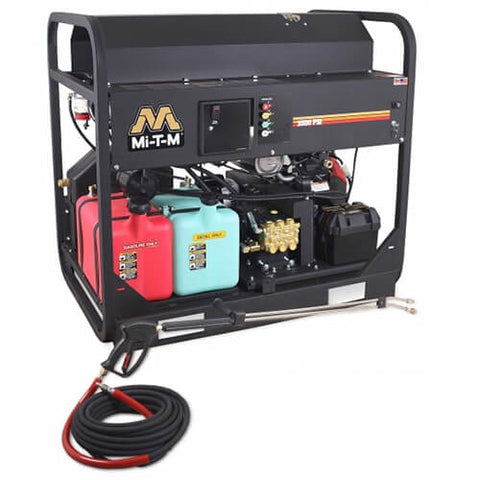

(1) Mi-T-M HS-3506-1MGH HS Series Hot Water Pressure Washer
(1) Quick connect nozzles - 0°, 15°, 25° and 40°
(1) 50-foot x 3/8-inch steel wire-braided high pressure hose with quick connects
(1) Professional-grade insulated trigger gun with safety lock-off
(1) Adjustable pressure insulated dual lance
