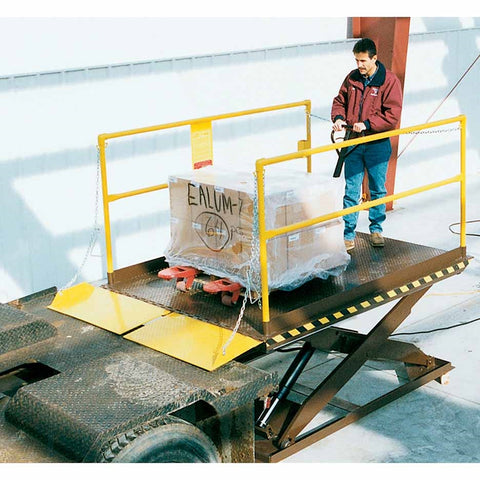

Vestil WL-100-5-68 Prem Truck Scissor Dock Lift 5K 6X8 Ft
$11,247.85
Vestil Prem Truck Scissor Dock Lift 5K 6X8 Ft WL-100-5-68
- Unique design services semi-trailers when loading dock is unavailable
- Treadplate surface provides a safe non-slip grip
- Safety velocity fuses protect the hydraulic cylinders
- Upper travel limit switch cuts power to unit when max raised height is reached
| Uniform Capacity (lbs.) | 5000 |
| Overall Frame Width (in.) | 62 |
| Overall Frame Length (in.) | 93 |
| Platform Length (in.) | 96 |
| Platform Width (in.) | 72 |
| Lowered Height (in.) | 8 |
| Raised Height (in.) | 68 |
| Push Button Coil Cord Length (feet) | 4-20 |
| External Motor Horsepower | 6.5 |
| External Motor Voltage/Phase | 460/3 |
| Motor Hertz | 60 |
| Motor Weight (lbs.) | 300 |
| Axle Side Load Capacity (lbs.) | 3250 |
| Axle End Load Capacity (lbs.) | 3750 |
| Handrail Height (in) | 45 |
| Handrail Midrail Height (in) | 21 |
| Toeboard Height (in) | 4 |
| Beveled Toe Guard (in) | 5 |
| Platform Type | Treadplate |
| Platform Thickness (in.) | 1/4 |
| Includes | Overload Protection |
| OSHA | 1910.28 |
| ANSI | MH 29.1 |
