Klein TI220 Thermal Imager for Android Devices

$249.99

Product Code: KLE-TI220

Usually Ships in 7-10 Days

$249.99
Buy Now
Description

Klein TI220 Thermal Imager for Android Devices

Features
The Klein Tools TI220 Thermal Imager for Android Devices has 10,800 pixels delivering excellent resolution to troubleshoot hot and cold spots. This Thermal Imager is perfect for detecting hot spots in panels, on wiring, or on parts of equipment; helping find sources of energy loss within a home/building; helps detect moisture behind walls and flooring; clogs in pipes; and much more. Easily capture, store, and share thermal images and video through the Klein Tools Thermal Imager Android App. Available for free on Google Play store.

  • Thermal Imager for Android Devices has 10,800 pixels to deliver excellent resolution for troubleshooting hot and cold spots
  • Easily capture, store and share thermal images and video, including time-lapse video
  • Features touch screen temperature, high/low temperatures, and differential temperature readout
  • View temperature ranges from -4 to 752-Degree Fahrenheit (-20 to 400-Degree Celsius) in three color palettes; ironbow, rainbow, or grayscale
  • Includes high/low temperature alarms to monitor systems
  • Compatible with most Android devices versions 6.0 or higher with USB-C or Micro-USB connectors
  • Klein Tools Thermal Imager Android App is available for free in Google Play store
  • Durable 6.6-Foot (2 m) drop test protection

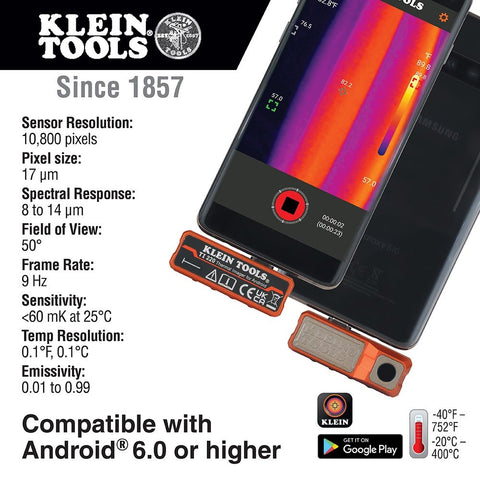

Technical Specs
  • Type: Thermal Imager
  • Application: View Hot and Cold Spots For Instant Troubleshooting
  • Special Features: High and Low Temperature Points, Touch-Point Temperature, Options for Temperature Alarms, Time-Lapse Video, 3 Color Palettes
  • Display: External Device
  • Display Resolution: 10,800 Pixels
  • Sensor Type: VOx Microbolometer
  • Sensor Resolution: 10,800 Pixels
  • Thermal Sensitivity: <60 mK at 25 degC
  • Spectral Range: 8 to 14 1/4m
  • Temperature Range: -4 deg to 752 degF (-20 deg to 400 degC)
  • Accuracy: +/-2 degC or 2% (whichever is greater). Not calibrated below 10 degC (14 degF)
  • Field of View: Horizontal: 50 deg, Vertical: 50 deg
  • Laser Sighting: No
  • Emissivity: 0.01 to 0.99, Adjustable
  • Color Palettes: Ironbow, Rainbow, and Grayscale
  • Photo Capture: Yes
  • Maximum Frames per Second: <9 Hz
  • Memory: External Device
  • Batteries: Powered from External Device
  • Included: USB-C Connector, Micro-USB Connector/Adapter, Hard Storage Case with Carabiner, and Instructions
  • Overall Length: 2.13'' (5.4 cm)
  • Overall Width: 0.73'' (1.9 cm)
  • Overall Height: 1.07'' (2.7 cm)
  • Material: Aluminum Housing, Electronic Components
  • Standards: CE and UKCA
  • Weight: 1 oz (31 g)
  • UPC: 092644693489
Include

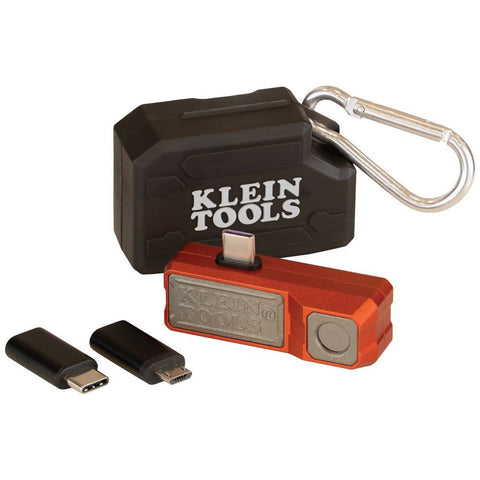

(1) Klein TI220 Thermal Imager for Android Devices
